Murata ElectronicsJapan

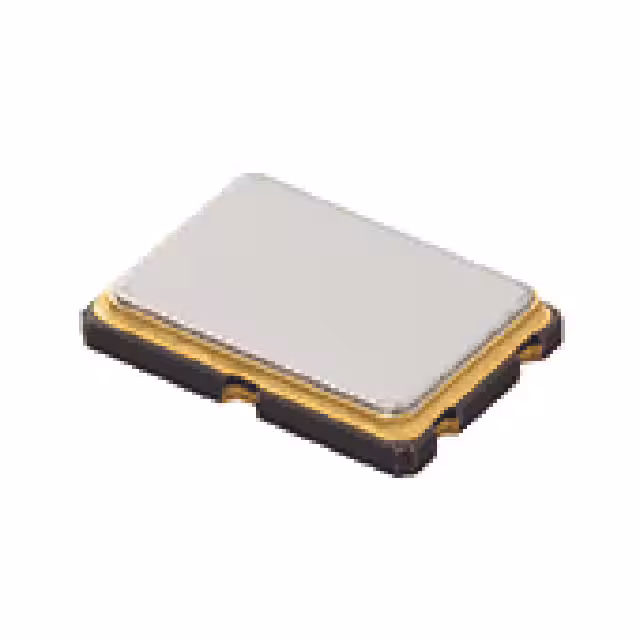

MONOLITHIC CRYSTAL FILTER 38.85M
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth | 5 kHz |
| Frequency - Center | 38.85 MHz |
| Impedance | 610 Ohms |
| Ripple | 1dB |
| Environment and package | |
| Height (Max) | 0.049" (1.25mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Other | |
| Insertion Loss | 5dB |
| Mfr | Murata Electronics |
| Number of Poles | 4 |
| Product Status | Obsolete |
| Series | XDCAG |
