TDK CorporationJapan

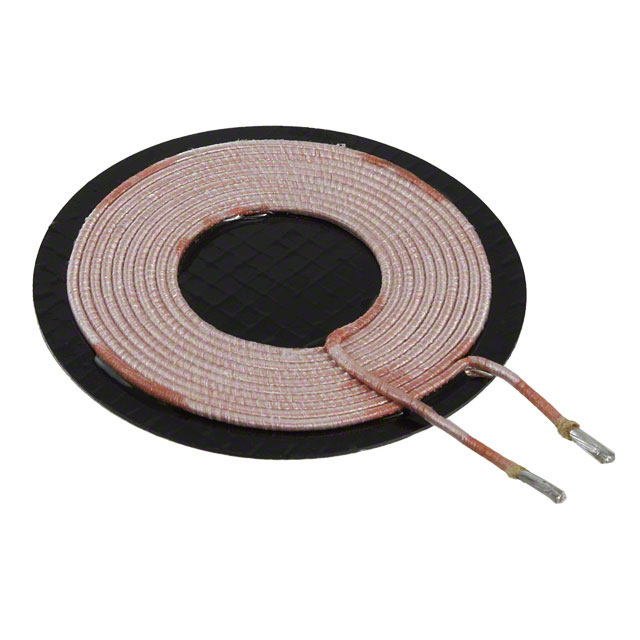

TX 1 COIL 1 LYR 6.3UH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Environment and package | |
| Operating Temperature | -30°C ~ 70°C |
| Package | Tray |
| Size / Dimension | 1.97" Dia x 0.13" H (50.0mm x 3.4mm) |
| Other | |
| DC Resistance (DCR) | 60mOhm Max |
| Function | Transmitter |
| Inductance | 6.3µH |
| Mfr | TDK Corporation |
| Product Status | Obsolete |
| Q @ Freq | 70 @ 100kHz |
| Series | WT |
| Tolerance | ±10% |
| Type | 1 Coil, 1 Layer |
