WeEn SemiconductorsNetherlands

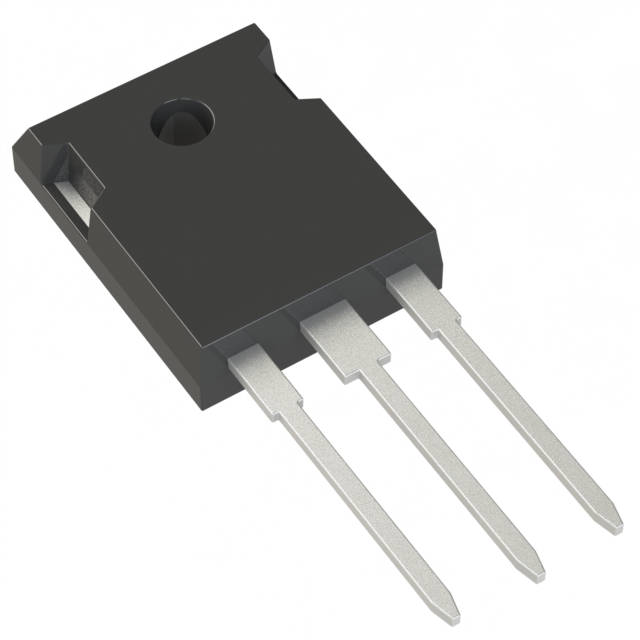

DIODE ARR SIC 1200V 10A TO247-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 10A |
| Current - Reverse Leakage @ Vr | 25 µA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 5 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Package | Tube |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Other | |
| Base Product Number | WNSC2 |
| Diode Configuration | 1 Pair Common Cathode |
| Mfr | WeEn Semiconductors |
| Product Status | Active |
| Reverse Recovery Time (trr) | 0 ns |
| Series | - |
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
