Century Spring CorpUnited States

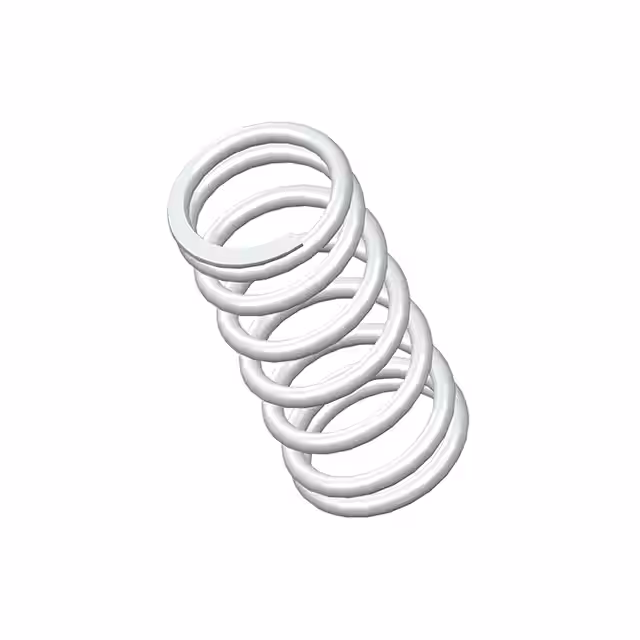

COMP O= .546,L= 1.19,W= .062
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 0.422" (10.72mm) |
| Diameter - Outside | 0.546" (13.87mm) |
| End Style | Closed & Ground |
| Finish | None |
| Free Length | 1.190" (30.23mm) |
| Material | Stainless Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 28.0 lbs/in |
| Series | - |
| Wire Diameter | 0.062" (1.57mm) |
