Rohm SemiconductorJapan

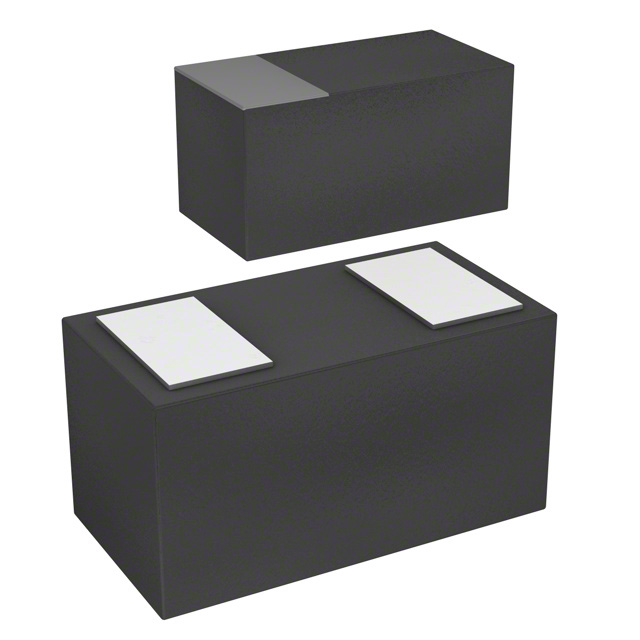

TVS DIODE 5VWM 11.4VC DSN0603-2
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage6 V
Clamping voltage11.4 VMax
Peak pulse power25 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 2.2A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 25W |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 11.4V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2, SOD-962, SMD0603 |
| Other | |
| Applications | General Purpose |
| Base Product Number | VS5V0 |
| Mfr | Rohm Semiconductor |
| Product Status | Active |
| Series | - |
| Type | Zener |
