Vishay General Semiconductor - Diodes DivisionUnited States

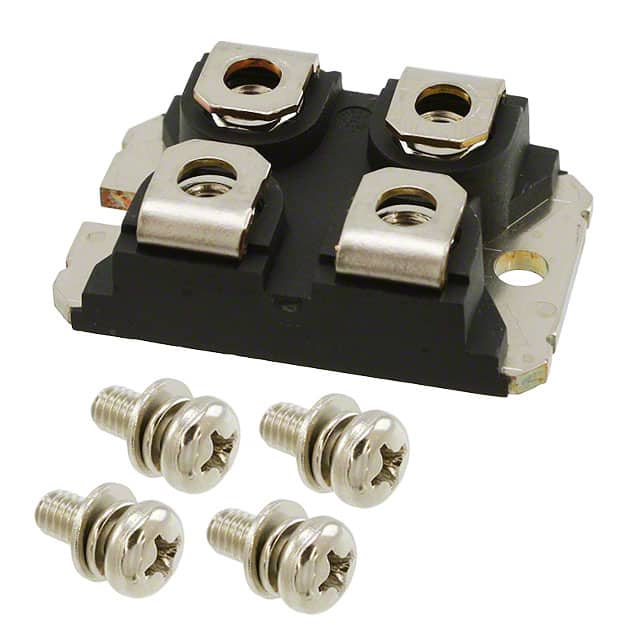

IGBT MOD 600V 400A 961W SOT227
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1 mA |
| Current - Collector (Ic) (Max) | 400 A |
| Power - Max | 961 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tube |
| Package / Case | SOT-227-4 |
| Supplier Device Package | SOT-227 |
| Other | |
| Base Product Number | GA250 |
| Configuration | Single |
| IGBT Type | - |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 16.25 nF @ 30 V |
| Mfr | Vishay General Semiconductor - Diodes Division |
| NTC Thermistor | No |
| Product Status | Obsolete |
| Series | - |
| Vce(on) (Max) @ Vge, Ic | 1.66V @ 15V, 200A |
Documents
No documents are linked to this part yet.
