Vishay General Semiconductor - Diodes DivisionUnited States

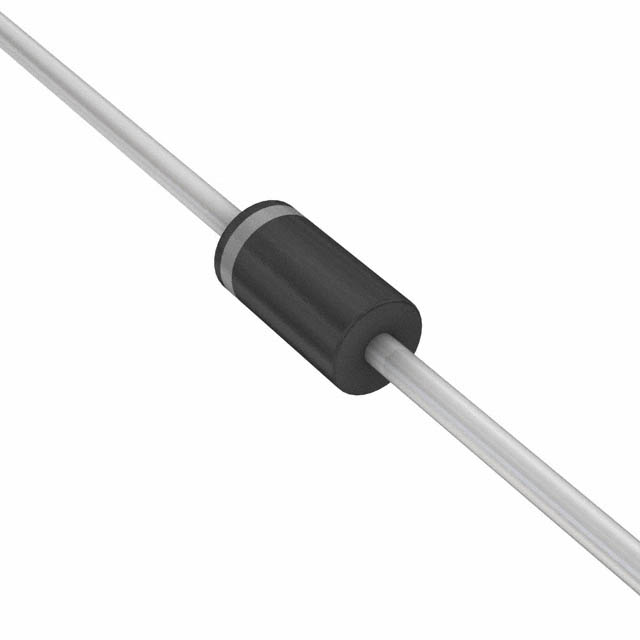

VS-1N5817TR
Single DiodesDIODE SCHOTTKY 20V 1A DO204AL
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage20 V
Average rectified current1 A
Forward voltage450 mVMax · 1 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 1 mA @ 20 V |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 1 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Other | |
| Base Product Number | 1N5817 |
| Capacitance @ Vr, F | 110pF @ 5V, 1MHz |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
