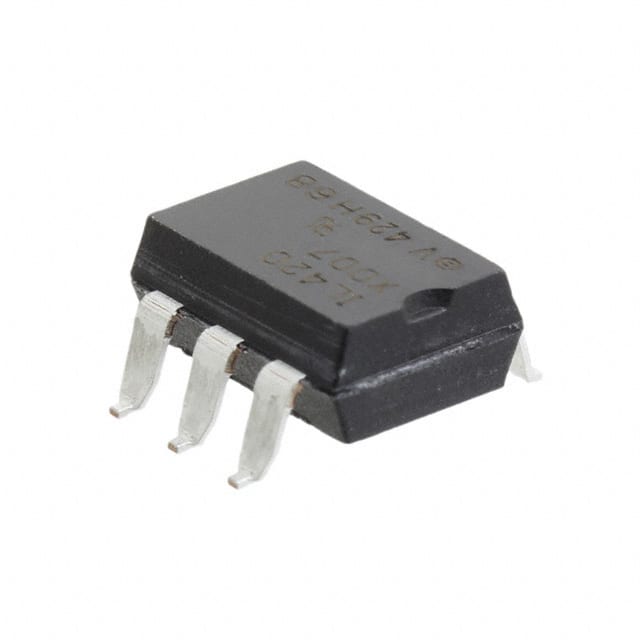

OPTOISOLATOR 5.3KV TRIAC 6SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Hold (Ih) | 200µA (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~100°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 6-SMD |
| Supplier Device Package | 6-SMD |
| Other | |
| Approval Agency | cUR, UR |
| Base Product Number | VO305 |
| Mfr | Vishay Semiconductor Opto Division |
| Output Type | Triac |
| Product Status | Active |
| Series | - |
| Static dV/dt (Min) | 1.5kV/µs |
| Turn On Time | - |
| Zero Crossing Circuit | No |
