STMicroelectronicsSwitzerland

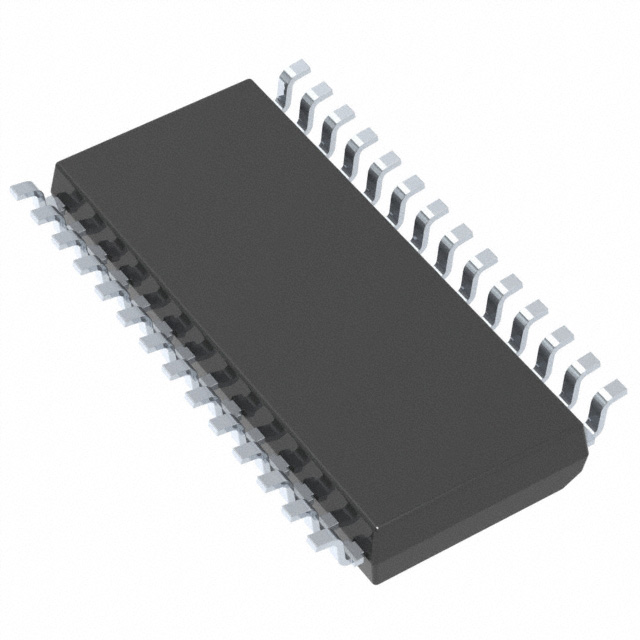

IC MOTOR DRIVER PAR 28SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output / Channel | 18A |
| Current - Peak Output | - |
| Voltage - Load | 41V (Max) |
| Voltage - Supply | 4.5V ~ 36V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tube |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
| Other | |
| Applications | DC Motors, General Purpose, Relays |
| Base Product Number | VN5772 |
| Fault Protection | Current Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Features | - |
| Interface | Logic |
| Load Type | Inductive, Capacitive, Resistive |
| Mfr | STMicroelectronics |
| Output Configuration | Half Bridge (2) |
| Product Status | Active |
| Rds On (Typ) | 50mOhm (Max) |
| Series | OMNIFET III™, VIPower™ |
| Technology | Power MOSFET |
