TDK CorporationJapan

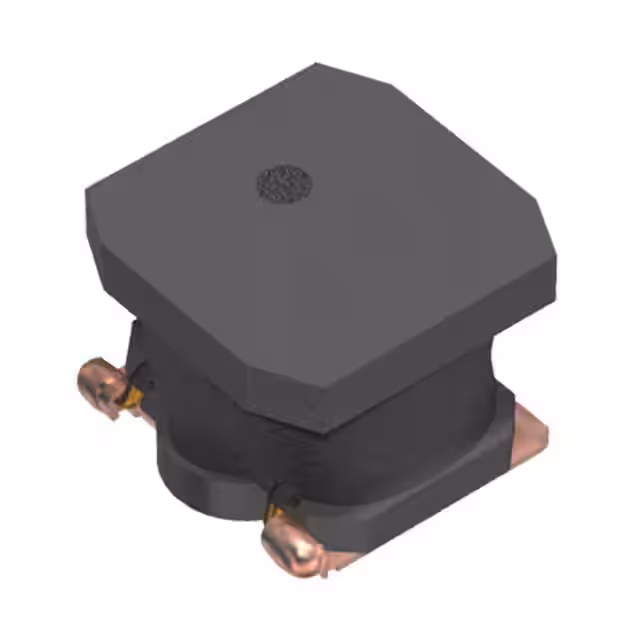

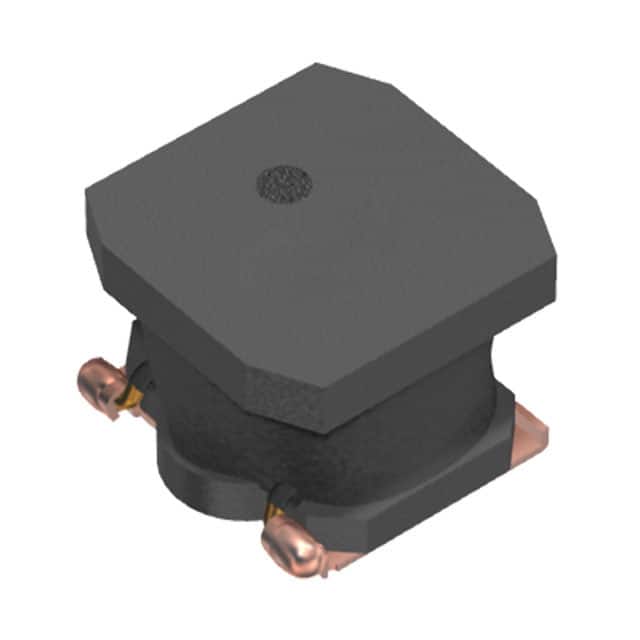

FIXED IND 10UH 3.4A 61.1MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance10 µH
Rated current3.4 AMax
Saturation current3.9 AMax
DC resistance61.1 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 3.9A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 61.1mOhm Max |
| Features | - |
| Inductance | 10 µH |
| Material - Core | Ferrite |
| Mfr | TDK Corporation |
| Product Status | Not For New Designs |
| Q @ Freq | - |
| Ratings | - |
| Series | VLS-EX |
| Shielding | Shielded |
| Tolerance | ±20% |
| Type | Drum Core, Wirewound |
