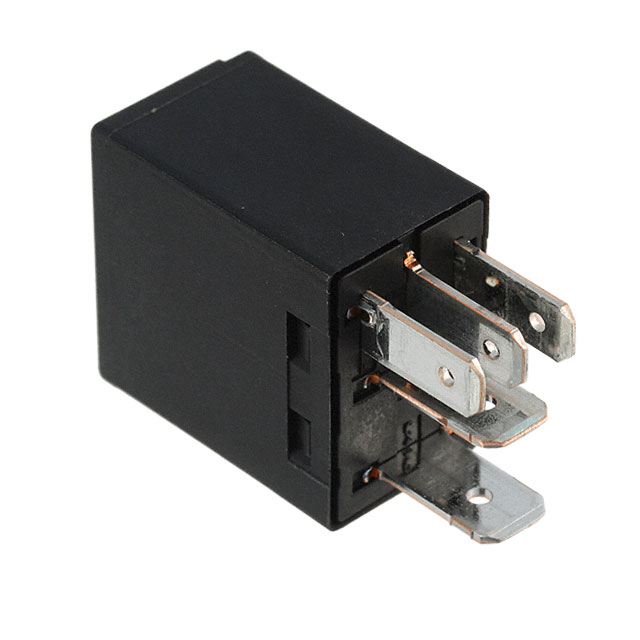

VFMA-15F41-S01
TE ConnectivitySwitzerland

VFMA-15F41-S01

ObsoleteAutomotive Relays

RELAY AUTOMOTIVE SPDT 12V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Current133 mA
Coil Power1.6W
Coil Voltage12VDC
Contact Rating (Current)30 A
Must Operate Voltage7.2 VDC
Must Release Voltage1.2 VDC
Switching Voltage12VDC - Nom
Environment and package
Mounting TypeSocketable
Operating Temperature-40°C ~ 125°C
PackageBulk
Other
Base Product NumberVFMA
Coil Resistance90 Ohms
Coil TypeNon Latching
Contact FormSPDT (1 Form C)
Contact MaterialSilver (Ag)
FeaturesResistor
MfrTE Connectivity Potter & Brumfield Relays
Product StatusObsolete
SeriesVFM
Termination StylePlug In, Quick Connect - 0.250" (6.3mm)

Documents

No documents are linked to this part yet.
