Vishay Beyschlag/Draloric/BC ComponentsUnited States

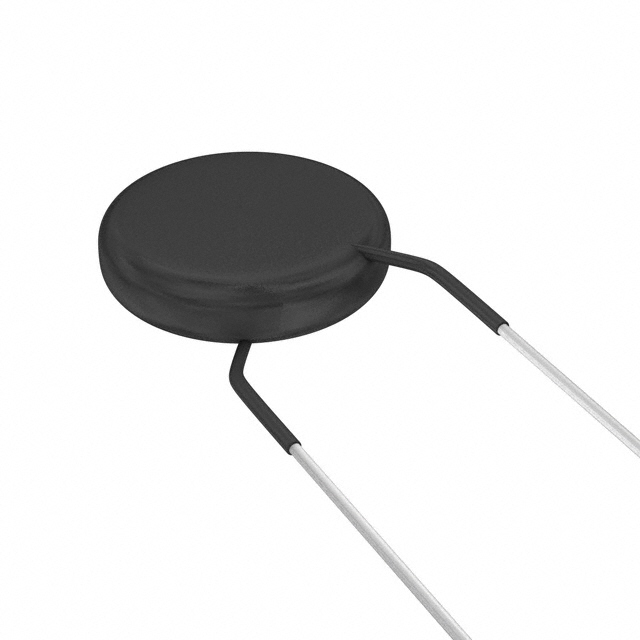

VDRS20W680BSE
Varistors, MOVsVARISTOR 1.1KV 6.5KA DISC 23MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage1.1 kV
Max AC voltage680 VMax
Max DC voltage895 VMax
Surge current6.5 kAMax
Energy496 JMax
| Power | |
|---|---|
| Current - Surge | 6.5 kA |
| Varistor Voltage (Max) | 1.21 kV |
| Varistor Voltage (Min) | 990 V |
| Varistor Voltage (Typ) | 1.1 kV |
| AC and DC characteristics | |
| Capacitance @ Frequency | 270 pF @ 1 kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Disc 23mm |
| Other | |
| Energy | 496J |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Maximum AC Volts | 680 V |
| Maximum DC Volts | 895 V |
| Number of Circuits | 1 |
| Packaging | Bulk |
| Part Status | Active |
| Series | VDRS |
