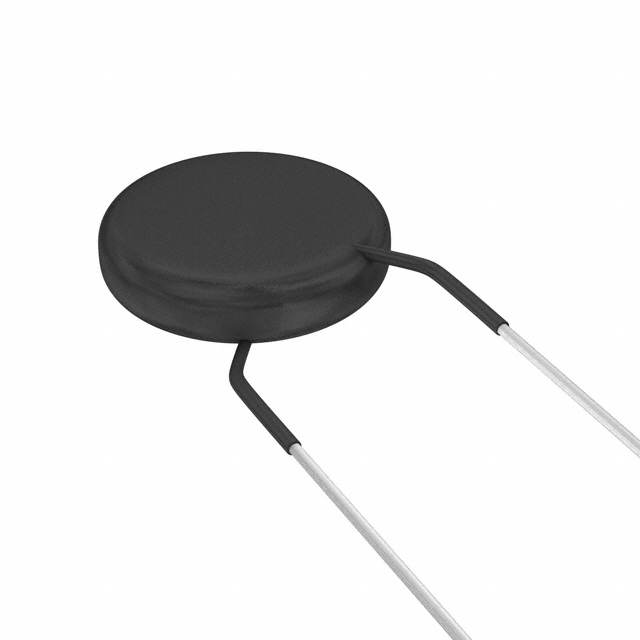

VDRS20W420BSE
Vishay Beyschlag/Draloric/BC ComponentsUnited States

VDRS20W420BSE

Varistors, MOVs

VARISTOR 680V 6.5KA DISC 23MM

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Varistor voltage680 V
Max AC voltage420 VMax
Max DC voltage560 VMax
Surge current6.5 kAMax
Energy344 JMax
Power
Current - Surge6.5 kA
Varistor Voltage (Max)748 V
Varistor Voltage (Min)612 V
Varistor Voltage (Typ)680 V
AC and DC characteristics
Capacitance @ Frequency510 pF @ 1 kHz
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 85°C (TA)
Package / CaseDisc 23mm
Other
Energy344J
ManufacturerVishay Beyschlag/Draloric/BC Components
Maximum AC Volts420 V
Maximum DC Volts560 V
Number of Circuits1
PackagingBulk
Part StatusActive
SeriesVDRS
