Vishay Beyschlag/Draloric/BC ComponentsUnited States

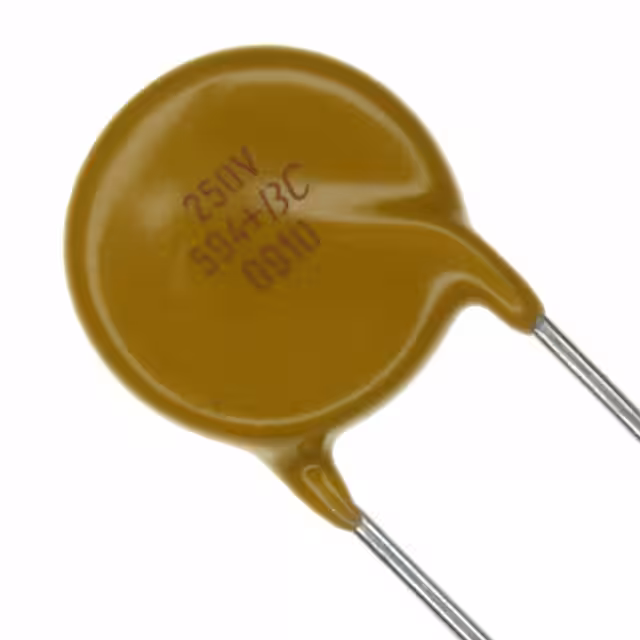

VARISTOR 390V 2.5KA DISC 12MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage390 V
Max AC voltage250 VMax
Max DC voltage320 VMax
Surge current2.5 kAMax
Energy58 JMax
| Power | |
|---|---|
| Current - Surge | 2.5 kA |
| Varistor Voltage (Max) | 429 V |
| Varistor Voltage (Min) | 351 V |
| Varistor Voltage (Typ) | 390 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 300 pF @ 1 kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | Disc 12mm |
| Other | |
| Energy | 58J |
| Features | - |
| Maximum AC Volts | 250 V |
| Maximum DC Volts | 320 V |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | VDRS |
