Vishay Beyschlag/Draloric/BC ComponentsUnited States

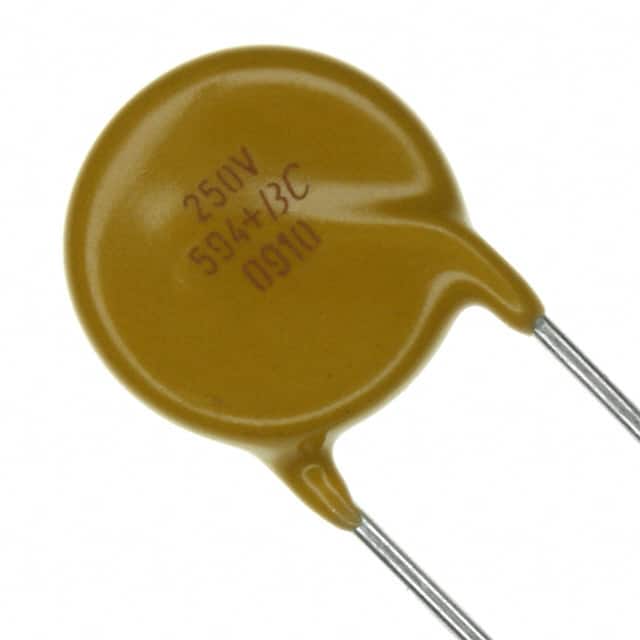

VARISTOR 240V 2.5KA DISC 12MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage240 V
Max AC voltage150 VMax
Max DC voltage200 VMax
Surge current2.5 kAMax
Energy36 JMax
| Power | |
|---|---|
| Current - Surge | 2.5 kA |
| Varistor Voltage (Max) | 264 V |
| Varistor Voltage (Min) | 216 V |
| Varistor Voltage (Typ) | 240 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 490 pF @ 1 kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | Disc 12mm |
| Other | |
| Energy | 36J |
| Features | - |
| Maximum AC Volts | 150 V |
| Maximum DC Volts | 200 V |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | VDRS |
