Texas InstrumentsUnited States

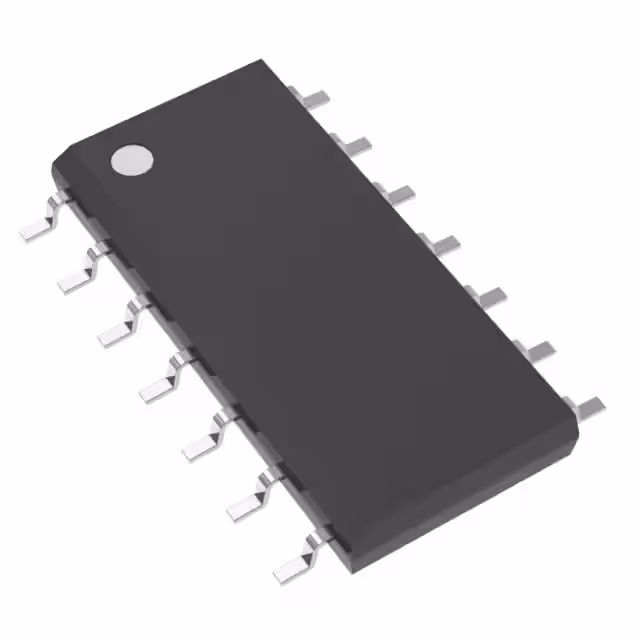

IC VARIABLE GAIN 1 CIRC 14SOIC
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage7 ~ 12 V
Input offset voltage4 mVTyp
Quiescent current36 mATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 19 µA |
| Current - Output / Channel | 160 mA |
| Current - Supply | 36mA |
| Voltage - Supply Span (Max) | 12 V |
| Voltage - Supply Span (Min) | 7 V |
| AC and DC characteristics | |
| -3db Bandwidth | 168 MHz |
| Slew Rate | 1700V/µs |
| Voltage - Input Offset | 4 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Amplifier Type | Variable Gain |
| Base Product Number | VCA822 |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Type | - |
| Product Status | Discontinued at Digi-Key |
| Series | - |
Documents
No documents are linked to this part yet.
