Texas InstrumentsUnited States

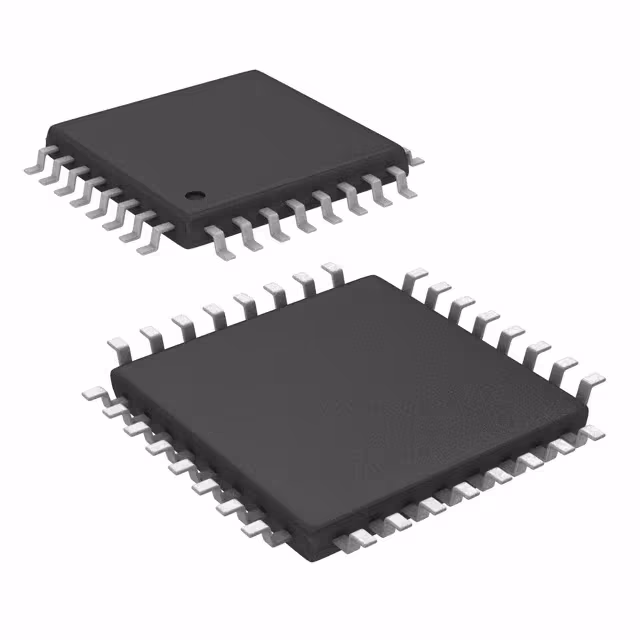

IC VARIABLE GAIN 2 CIRC 32TQFP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.75 ~ 5.25 V
Gain bandwidth product100 MHzTyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 1 nA |
| Current - Output / Channel | 40 mA |
| Current - Supply | - |
| Voltage - Supply Span (Max) | 5.25 V |
| Voltage - Supply Span (Min) | 4.75 V |
| AC and DC characteristics | |
| -3db Bandwidth | 30 MHz |
| Gain Bandwidth Product | 100 MHz |
| Slew Rate | 300V/µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (5x5) |
| Other | |
| Amplifier Type | Variable Gain |
| Base Product Number | VCA2618 |
| Mfr | Texas Instruments |
| Number of Circuits | 2 |
| Output Type | Differential |
| Product Status | Obsolete |
| Series | - |
Documents
No documents are linked to this part yet.
