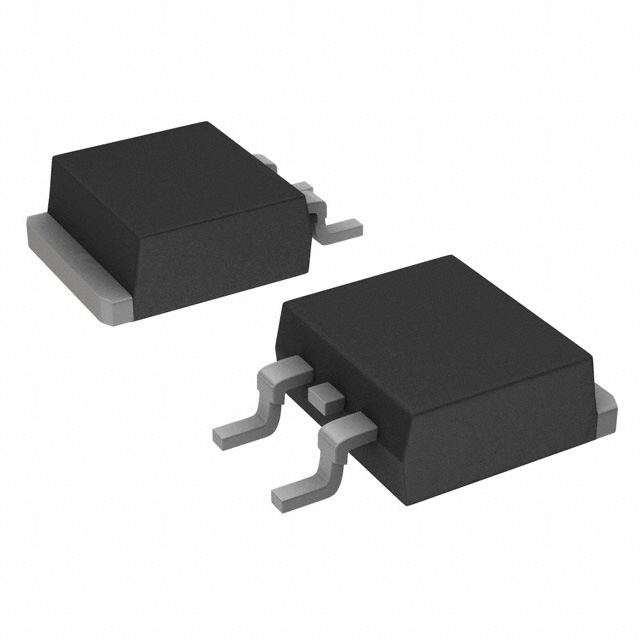

VBT3060C-E3/8W
Vishay General Semiconductor - Diodes DivisionUnited States

VBT3060C-E3/8W

Diode Arrays

DIODE ARR SCHOTT 60V 15A TO263AB

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Average Rectified (Io) (per Diode)15A
Current - Reverse Leakage @ Vr1.2 mA @ 60 V
Voltage - DC Reverse (Vr) (Max)60 V
Voltage - Forward (Vf) (Max) @ If700 mV @ 15 A
Environment and package
Mounting TypeSurface Mount
Operating Temperature - Junction-40°C ~ 150°C
Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263AB (D2PAK)
Other
Base Product NumberVBT3060
Diode Configuration1 Pair Common Cathode
ManufacturerVishay General Semiconductor - Diodes Division
PackagingTape & Reel (TR)
Part StatusActive
SeriesTMBS®
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
