Cinch Connectivity SolutionsUnited States

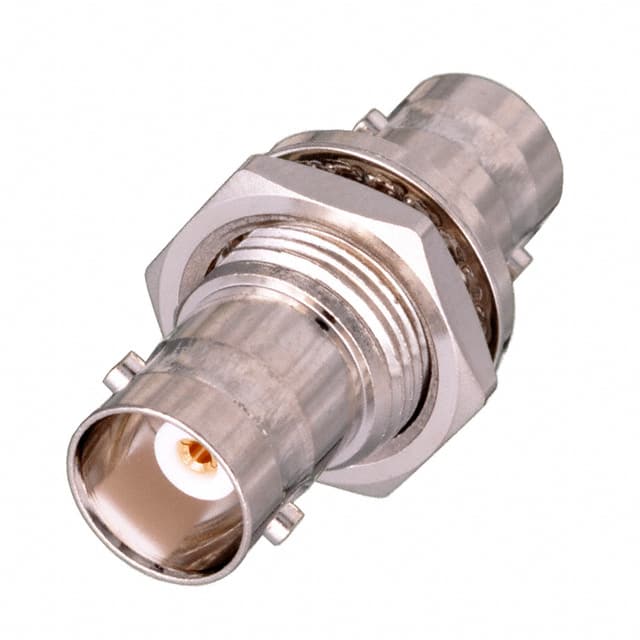

CONN ADAPT JACK-JACK BNC 50 OHM
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 4 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C~85°C |
| Package | Bulk |
| Other | |
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Base Product Number | VBA100 |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | BNC Jack, Female Socket |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Bayonet Lock, Bayonet Lock |
| Features | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Ingress Protection | - |
| Insertion Loss | 0.20dB |
| Mating Cycles | 500 |
| Mfr | Cinch Connectivity Solutions |
| Product Status | Active |
| Series | - |
| Style | Straight |
