Littelfuse Inc.United States

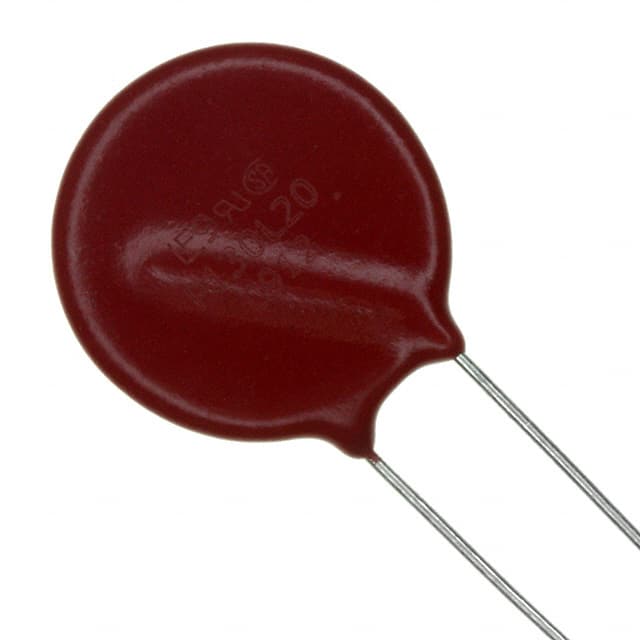

VARISTOR 1KV 10KA DISC 20MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage1 kV
Max AC voltage625 VMax
Surge current10 kAMax
Energy490 JMax
| Power | |
|---|---|
| Current - Surge | 10 kA |
| Varistor Voltage (Max) | 1.1 kV |
| Varistor Voltage (Min) | 900 V |
| Varistor Voltage (Typ) | 1 kV |
| AC and DC characteristics | |
| Capacitance @ Frequency | 120 pF @ 1 MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~85°C(TA) |
| Package | Bulk |
| Package / Case | Disc 20mm |
| Other | |
| Energy | 490J |
| Maximum AC Volts | 625 V |
| Mfr | Littelfuse Inc. |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | C-III |
Documents
No documents are linked to this part yet.
