TE ConnectivitySwitzerland

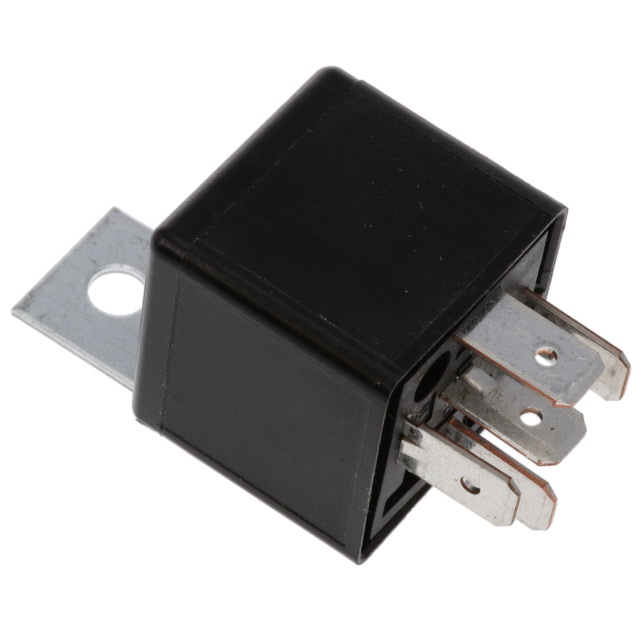

RELAY AUTOMOTIVE SPDT 40A 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 133 mA |
| Coil Power | 1.6W |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 40 A |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.6 VDC |
| Switching Voltage | 14VDC - Max |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Bulk |
| Other | |
| Base Product Number | V23134 |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag) |
| Features | - |
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 7 ms |
| Product Status | Active |
| Release Time | 2 ms |
| Series | F4 |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
