Littelfuse Inc.United States

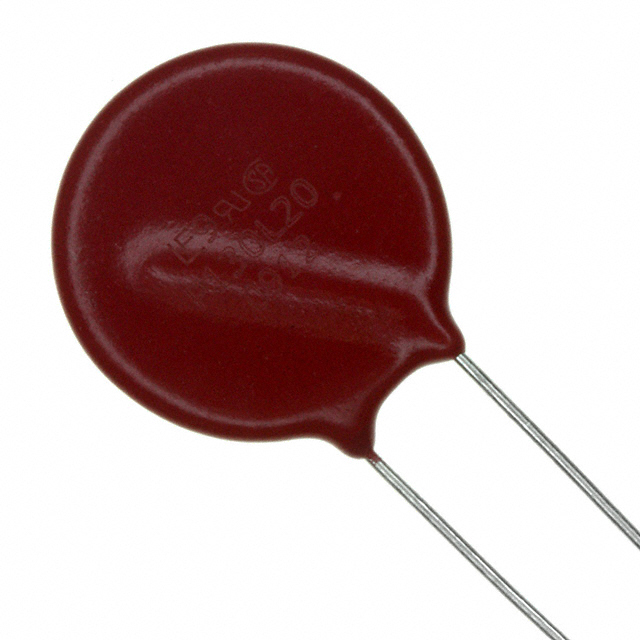

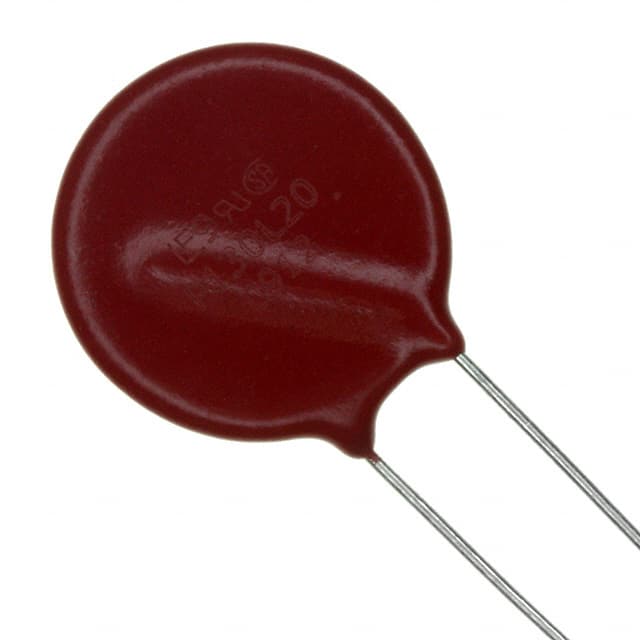

VARISTOR 1KV 10KA DISC 20MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage1 kV
Max AC voltage625 VMax
Max DC voltage825 VMax
Surge current10 kAMax
Energy490 JMax
| Power | |
|---|---|
| Current - Surge | 10 kA |
| Varistor Voltage (Max) | 1.1 kV |
| Varistor Voltage (Min) | 900 V |
| Varistor Voltage (Typ) | 1 kV |
| AC and DC characteristics | |
| Capacitance @ Frequency | 250 pF @ 1 MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Package | Tape & Reel (TR) |
| Package / Case | Disc 20mm |
| Other | |
| Energy | 490J |
| Features | - |
| Maximum AC Volts | 625 V |
| Maximum DC Volts | 825 V |
| Mfr | Littelfuse Inc. |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | HMOV™ |
