Honeywell Sensing and Productivity SolutionsUnited States

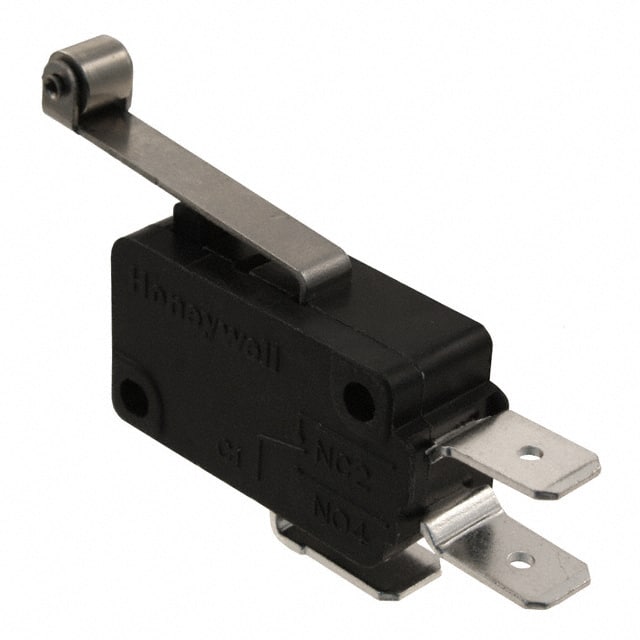

SWITCH SNAP ACTION SPDT 22A 250V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 22A (AC) |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C~150°C |
| Package | Tray |
| Other | |
| Actuator Type | Lever, Roller |
| Base Product Number | V15H22 |
| Circuit | SPDT |
| Differential Travel | 0.047" (1.2mm) |
| Electrical Life | 10,000 Cycles |
| Features | - |
| Ingress Protection | - |
| Mechanical Life | 5,000,000 Cycles |
| Mfr | Honeywell Sensing and Productivity Solutions |
| Operating Force | 60gf |
| Operating Position | 0.812" (20.6mm) |
| Overtravel | 0.051" (1.3mm) |
| Pretravel | 0.125" (3.2mm) |
| Product Status | Active |
| Release Force | 10gf |
| Series | V15 |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
