Mornsun America, LLCChina

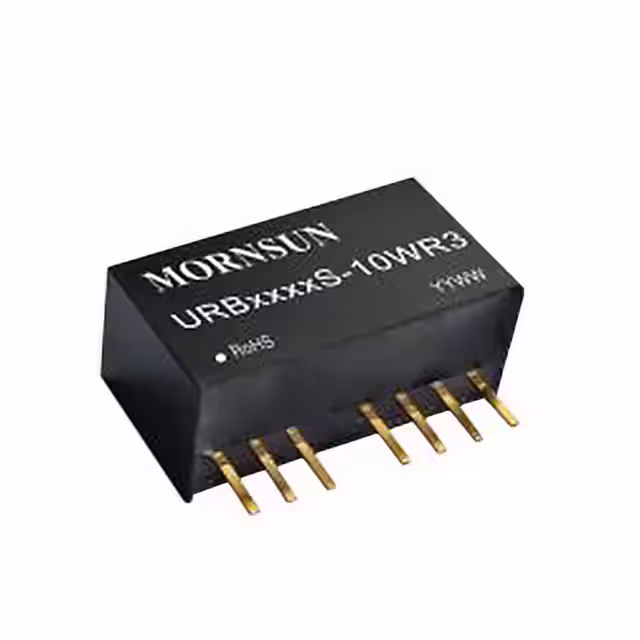

DC DC CONVERTER 5V 10W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage9 ~ 36 V
Output voltage5 V
Output current2 AMax
Power10 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 2A |
| Power (Watts) | 10 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | URB2405 |
| Control Features | - |
| Efficiency | 88% |
| Features | - |
| Mfr | Mornsun America, LLC |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | URB2405S-10WR3 (10W) |
| Type | Isolated Module |
