CELUnited States

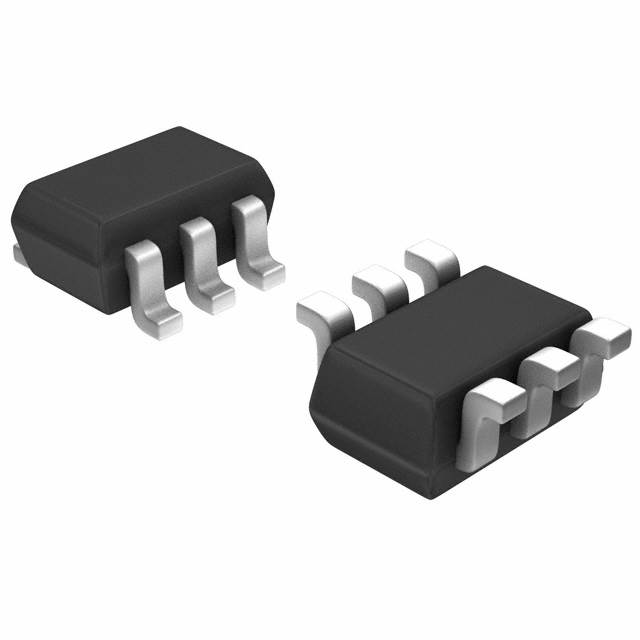

RF TRANS 2 NPN 10V 8GHZ 6SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 35mA |
| Power - Max | 200mW |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 3V |
| Frequency - Transition | 8GHz |
| Gain | - |
| Noise Figure (dB Typ @ f) | 1.9dB ~ 3.2dB @ 2GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-SO |
| Other | |
| Base Product Number | UPA800 |
| Mfr | CEL |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | 2 NPN (Dual) |
