TRANS PREBIAS DUAL NPN SSMINI6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 125mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 35 @ 5mA, 10V |
| Frequency - Transition | 150MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

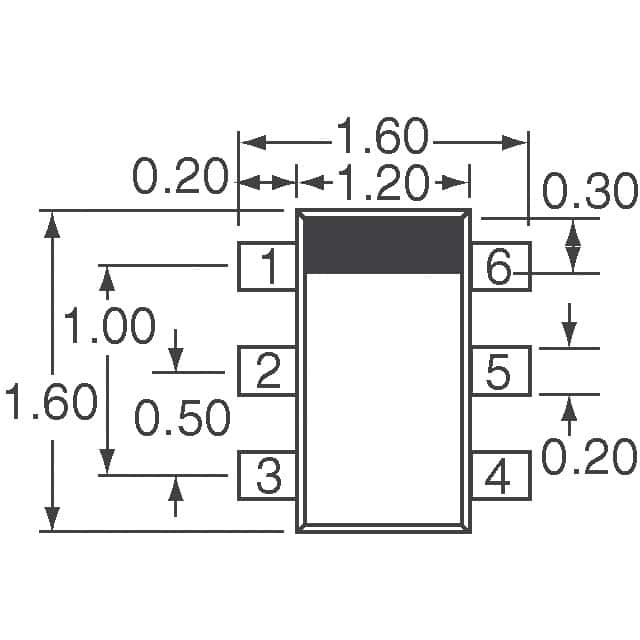

| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SSMini6-F2 |
| Other | |
| Base Product Number | UP0421 |
| Mfr | Panasonic Electronic Components |
| Product Status | Obsolete |
| Resistor - Base (R1) | 10kOhms |
| Resistor - Emitter Base (R2) | 10kOhms |
| Series | - |

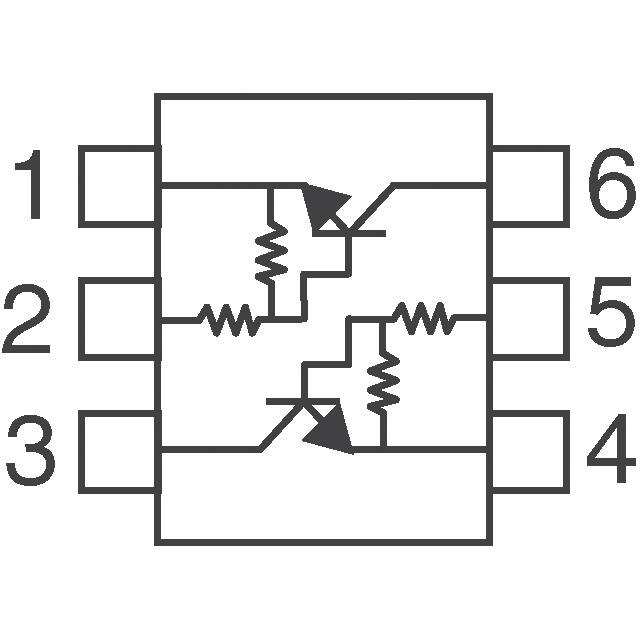

| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
