Texas InstrumentsUnited States

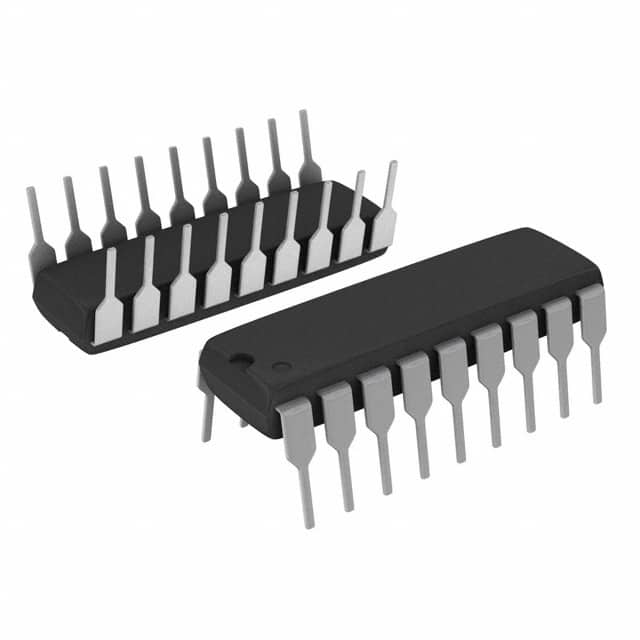

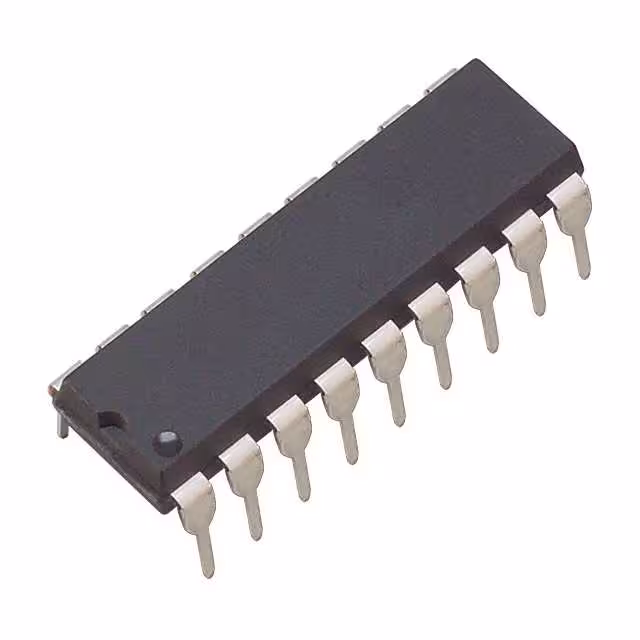

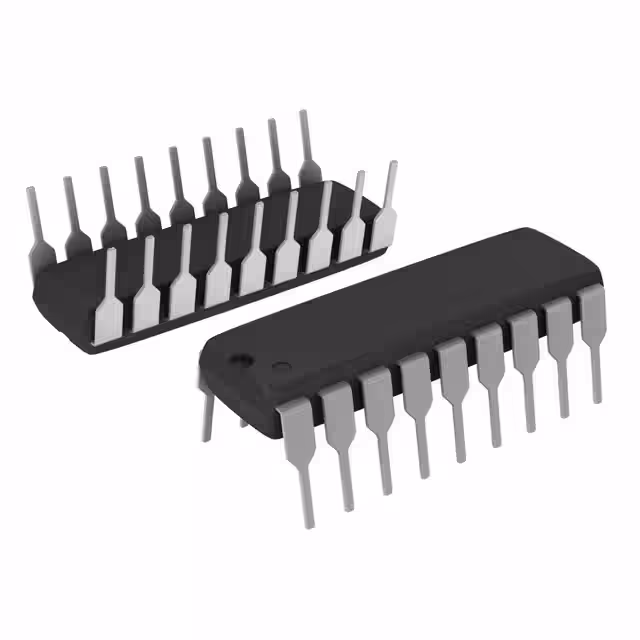

TRANS 8NPN DARL 50V 0.5A 18DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | - |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
| Other | |
| Base Product Number | ULN2803 |
| Mfr | Texas Instruments |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | 8 NPN Darlington |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
