UMWMalaysia

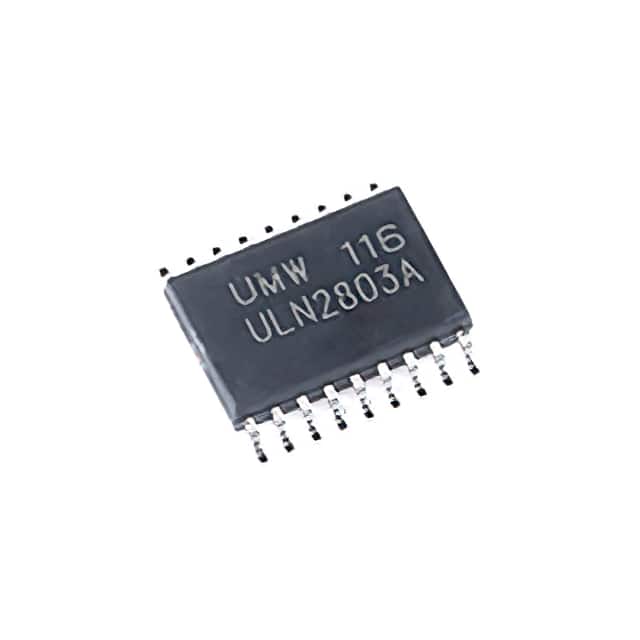

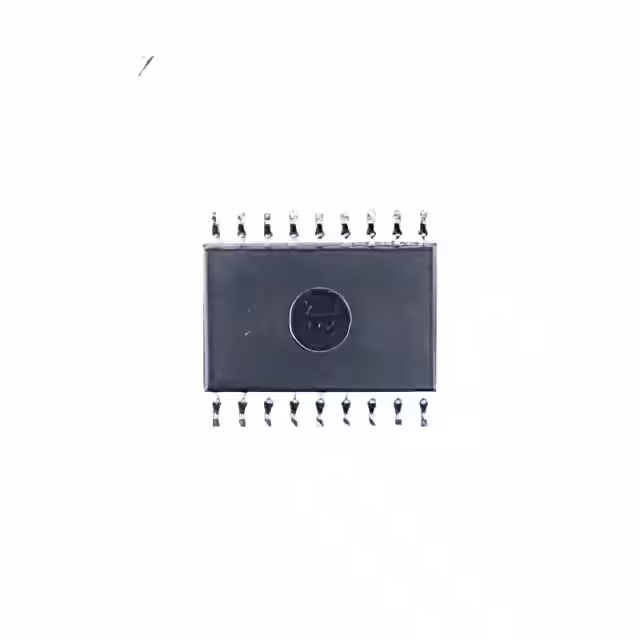

SOP-18 DARLINGTON TRANSISTOR ARR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 20µA |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | - |
| Voltage - Collector Emitter Breakdown (Max) | - |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOP |
| Other | |
| Mfr | UMW |
| Product Status | Active |
| Series | UMW |
| Transistor Type | 8 NPN Darlington |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
Documents
No documents are linked to this part yet.
