STMicroelectronicsSwitzerland
TRANS 4NPN DARL 50V 1.75A 16DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 1.75A |
| Power - Max | 1W |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~85°C(TA) |
| Package | Tube |

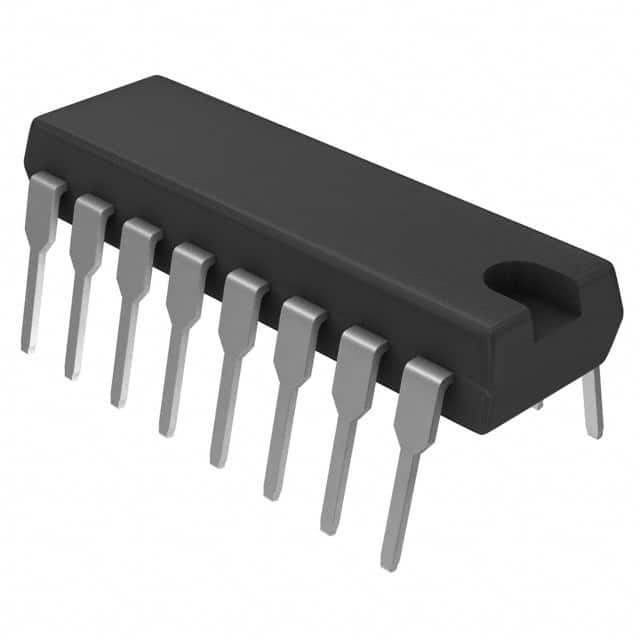

| Package / Case | 16-PowerDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PowerDIP (20x7.10) |
| Other | |
| Base Product Number | ULN2068 |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | - |
| Transistor Type | 4 NPN Darlington (Quad) |
| Vce Saturation (Max) @ Ib, Ic | 1.4V @ 2mA, 1.25A |
