NichiconJapan

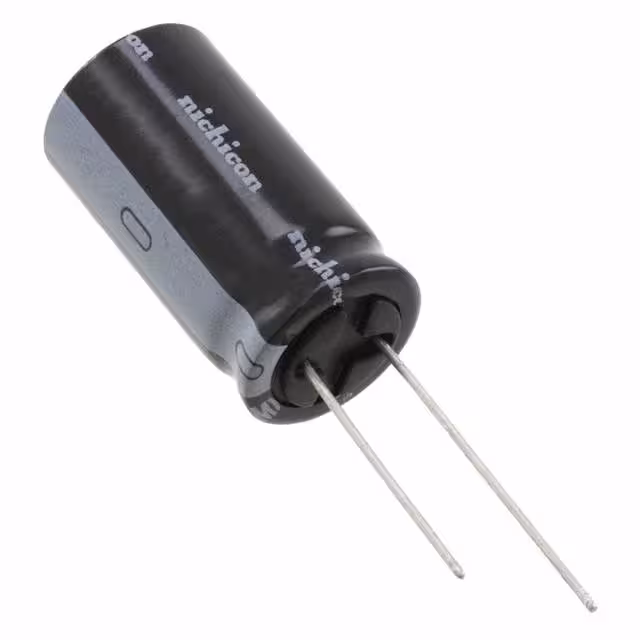

CAP ALUM 3300UF 20% 35V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance3.3 mF
Rated voltage35 V
Tolerance20 %
Lifetime10 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 35 V |
| AC and DC characteristics | |
| Impedance | 11 mOhms |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 3300 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | 0.295" (7.50mm) |
| Mfr | Nichicon |
| Polarization | Polar |
| Product Status | Not For New Designs |
| Ratings | - |
| Series | UHW |
| Tolerance | ±20% |
