Vishay General Semiconductor - Diodes DivisionUnited States

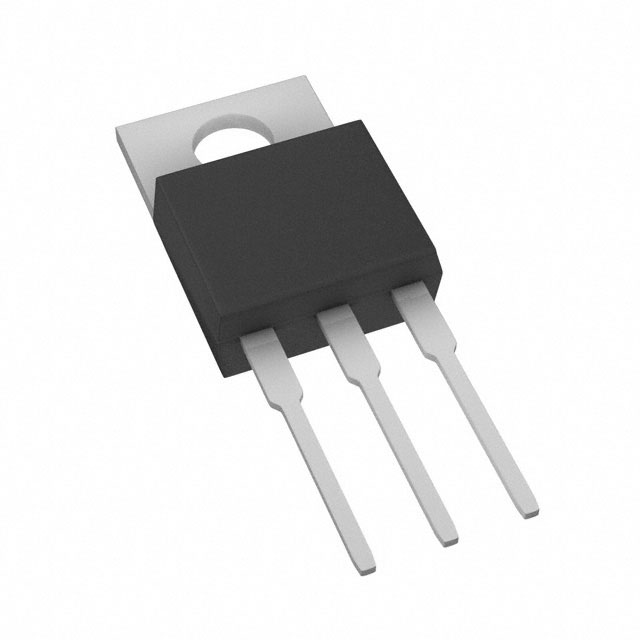

UG10GCT-E3/45
Diode ArraysDIODE ARRAY GP 400V 5A TO220-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 5A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 5 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | UG10 |
| Diode Configuration | 1 Pair Common Cathode |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Packaging | Tube |
| Part Status | Obsolete |
| Reverse Recovery Time (trr) | 50 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
