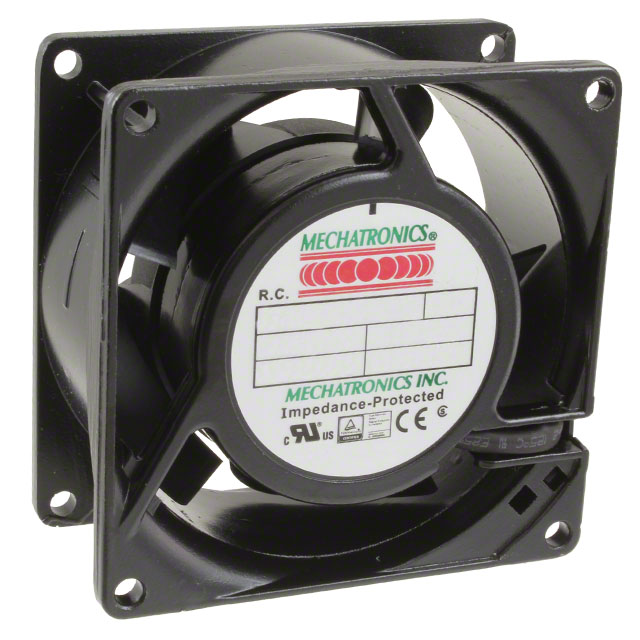

UF80A12-BTLR
Mechatronics Fan GroupUnited States

UF80A12-BTLR

ActiveAC Fans

FAN AXIAL 80X38MM 115VAC TERM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.100A
Power (Watts)9.00W
Voltage Range-
Voltage - Rated115VAC
AC and DC characteristics
Noise32.0dB(A)
Environment and package
Operating Temperature-40 ~ 158°F (-40 ~ 70°C)
PackageBulk
Size / DimensionSquare - 80mm L x 80mm H
Other
Air Flow25.0 CFM (0.700m³/min)
Approval AgencyCE, cUL, TUV, UL
Base Product NumberUF80A
Bearing TypeBall
Fan TypeTubeaxial
Features-
Ingress Protection-
Material - BladePolybutylene Terephthalate (PBT)
Material - FrameAluminum
MfrMechatronics Fan Group
Product StatusActive
RPM2400 RPM
SeriesUF80A
Static Pressure0.160 in H2O (39.8 Pa)
Termination2 Terminals
Weight0.617 lb (279.87 g)
Width38.00mm

Documents

No documents are linked to this part yet.
