Panjit International Inc.Taiwan, China

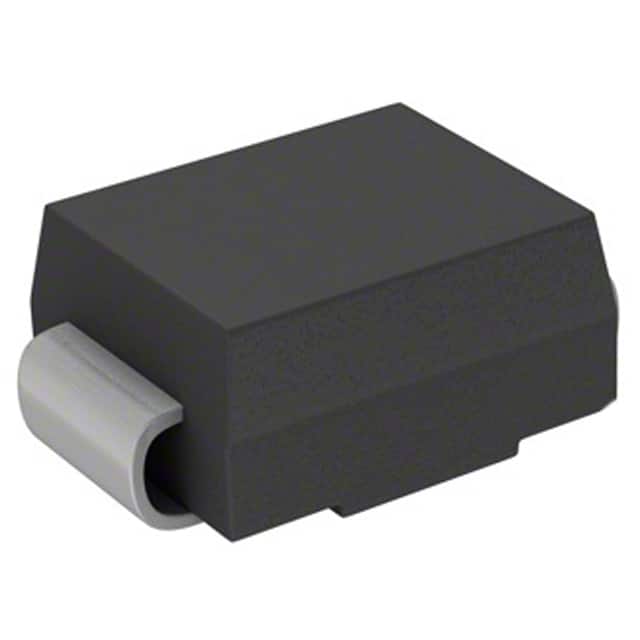

DIODE GEN PURP 400V 5A SMC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage400 V
Average rectified current5 A
Forward voltage1.25 VMax · 5 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 5A |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 5 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) |
| Other | |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | Panjit International Inc. |
| Product Status | Active |
| Reverse Recovery Time (trr) | 50 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
