Semtech CorporationUnited States

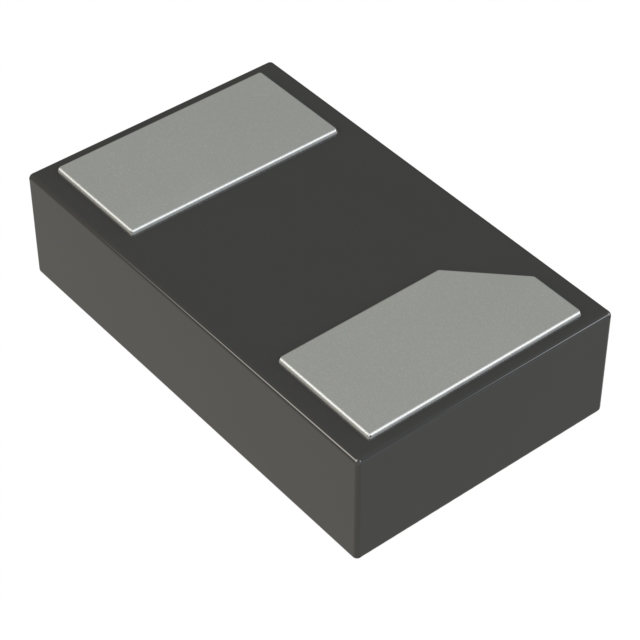

TVS DIODE 33VWM 60VC SLP1006P2
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage33 V
Breakdown voltage36 V
Clamping voltage60 VMax
Peak pulse power125 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 2A (1.2/50µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 125W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 36V |
| Voltage - Clamping (Max) @ Ipp | 60V |
| Voltage - Reverse Standoff (Typ) | 33V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 0402 (1006 Metric) |
| Qualification | AEC-Q100 |
| Supplier Device Package | SLP1006P2 |
| Other | |
| Applications | - |
| Base Product Number | UCLAMP3601 |
| Mfr | Semtech Corporation |
| Product Status | Active |
| Series | uClamp® |
| Type | Zener |
