Semtech CorporationUnited States

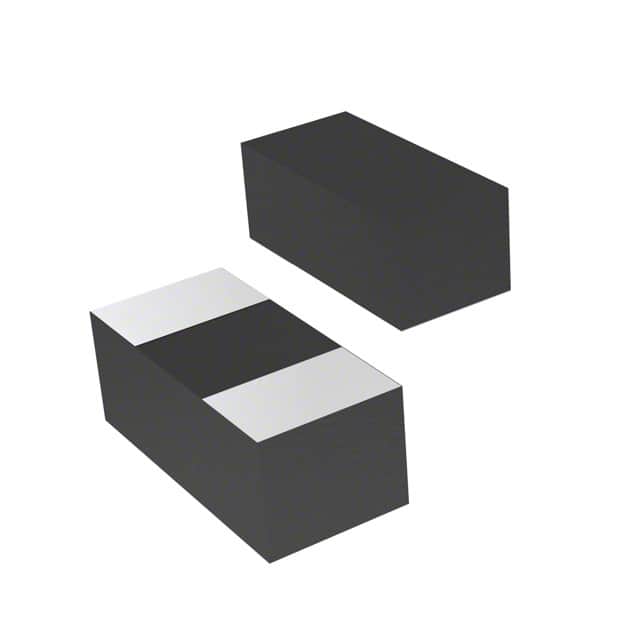

TVS DIODE 3.3VWM 11.5V SGP1006N2
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage3.3 V
Breakdown voltage4.5 V
Clamping voltage11.5 VMax
Peak pulse power275 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 25A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 275W |
| Voltage - Breakdown (Min) | 4.5V |
| Voltage - Clamping (Max) @ Ipp | 11.5V |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 2-UDFN |
| Supplier Device Package | SGP1006N2 |
| Other | |
| Applications | General Purpose |
| Base Product Number | UCLAMP3381 |
| Mfr | Semtech Corporation |
| Product Status | Active |
| Series | uClamp® |
| Type | Zener |
