Semtech CorporationUnited States

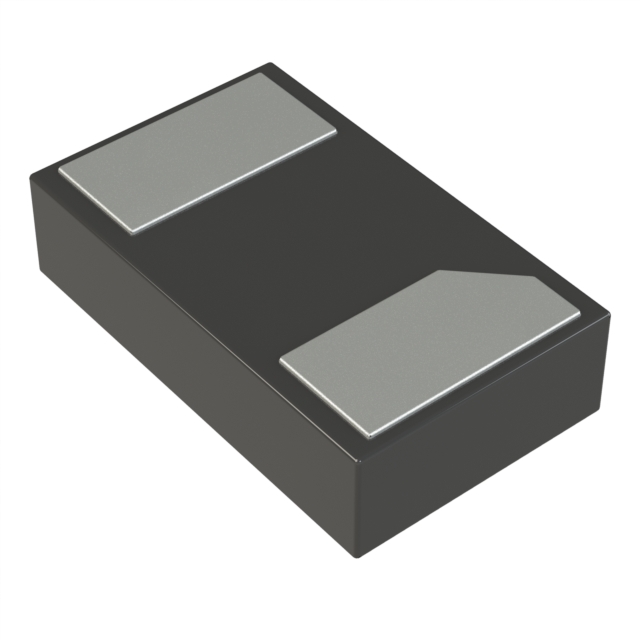

TVS DIODE 3.3V 7.5V SLP0603P2X3A
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage3.3 V
Breakdown voltage3.65 V
Clamping voltage7.5 VMax
Peak pulse power30 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 30W |
| Voltage - Breakdown (Min) | 3.65V |
| Voltage - Clamping (Max) @ Ipp | 7.5V |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 6pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | SLP0603P2X3 |
| Other | |
| Applications | General Purpose |
| Base Product Number | UCLAMP3311 |
| Mfr | Semtech Corporation |
| Product Status | Active |
| Series | uClamp®, Z-Pak™ |
| Type | Zener |
