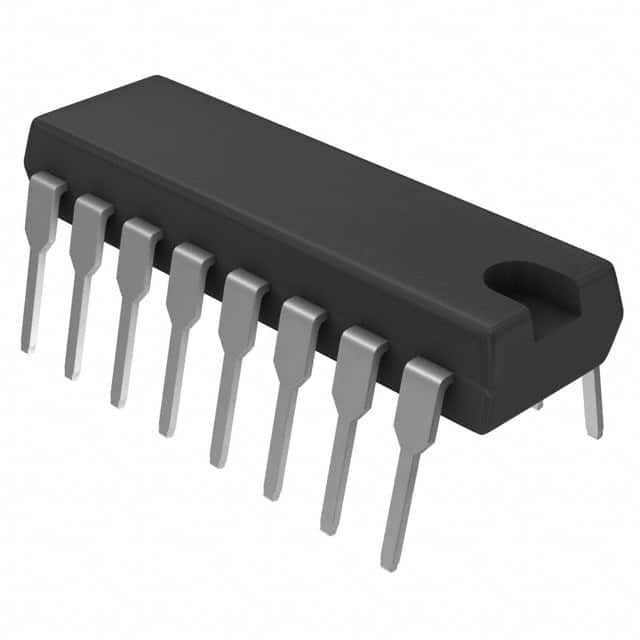

IC REG CTRLR MULT TOPOLOGY 16DIP
All alternatives
View full reportTechnical parameters
Key specs
TopologyFlyback
Outputs2
Input voltage6.95 ~ 40 V
Switching frequency500 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 6.95V ~ 40V |
| AC and DC characteristics | |
| Frequency - Switching | 500kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C(TA) |
| Package | Tube |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Other | |
| Base Product Number | UC3846 |
| Clock Sync | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Duty Cycle (Max) | 50% |
| Function | Step-Up, Step-Up/Step-Down |
| Mfr | Texas Instruments |
| Number of Outputs | 2 |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Discontinued at Digi-Key |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Boost, Flyback, Forward Converter, Half-Bridge, Push-Pull |
