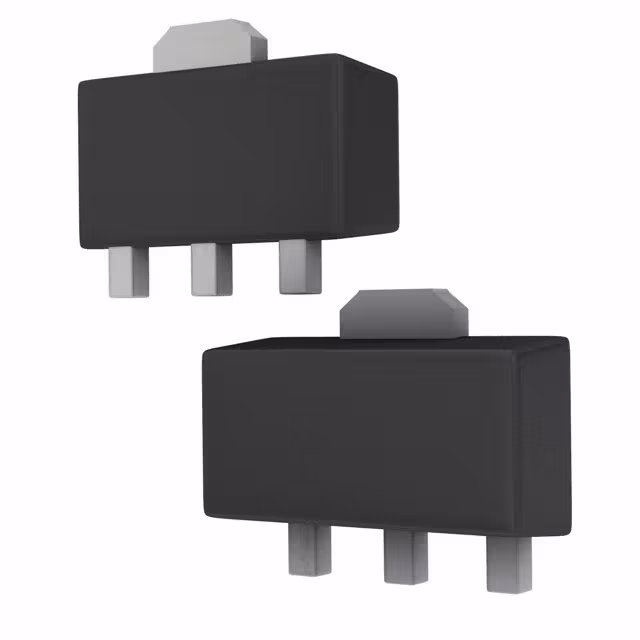

DIODE SCHOTTKY 40V 1A PW-MINI
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage40 V
Average rectified current1 A
Forward voltage550 mVMax · 1 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -40°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Supplier Device Package | PW-MINI |
| Other | |
| Base Product Number | U1GWJ49 |
| Capacitance @ Vr, F | - |
| Diode Type | Schottky |
| Mfr | Toshiba Semiconductor and Storage |
| Product Status | Obsolete |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
