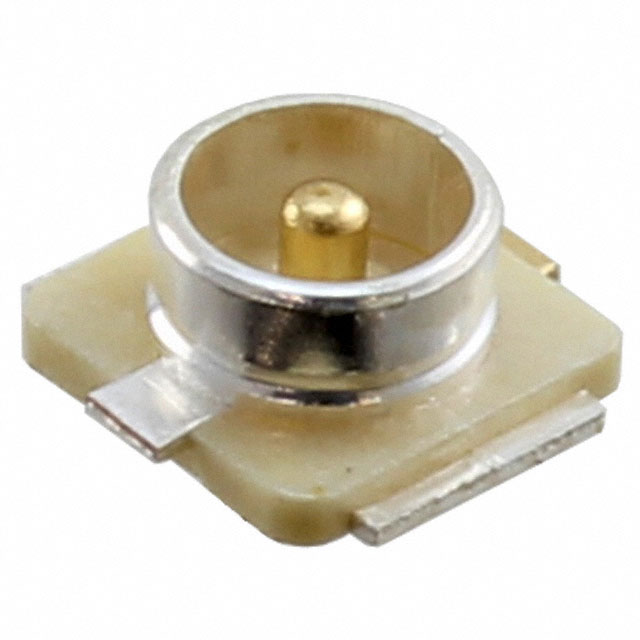

CONN U.FL RCPT STR 50 OHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Connector styleU.FL (IPEX)
GenderMale
Impedance50 Ω
Max frequency6 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 6 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 90°C |
| Package | Cut Tape (CT) Digi-Reel® Bulk |
| Other | |
| Base Product Number | U.FL |
| Body Finish | Silver |
| Body Material | Phosphor Bronze |
| Cable Group | - |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | U.FL (UMCC) |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Features | - |
| Housing Color | Beige |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 30 |
| Mfr | Hirose Electric Co Ltd |
| Number of Ports | 1 |
| Product Status | Active |
| Series | U.FL |
| Shield Termination | Solder |
