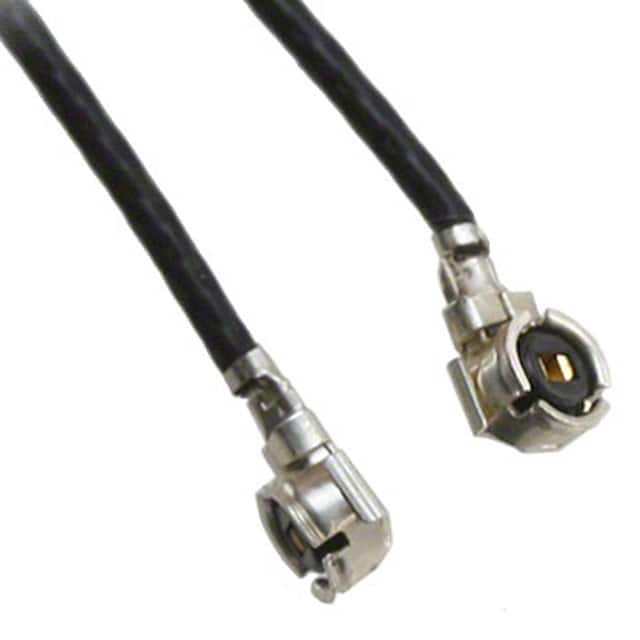

CBL ASSY U.FL PLUG-PLUG 1.575"
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Cable Impedance | 50 Ohms |
| Frequency - Max | 6 GHz |
| Overall Impedance | 50 Ohms |
| Environment and package | |
| 1st Connector Mounting Feature | - |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Mounting Feature | - |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~90°C |
| Package | Bag |
| Other | |
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Contact Gender | Female |
| Cable Type | 0.81mm OD Coaxial Cable |
| Color | White |
| Features | Shielded |
| Ingress Protection | - |
| Length | 1.575" (40.00mm) |
| Mfr | Hirose Electric Co Ltd |
| Product Status | Obsolete |
| Series | U.FL |
| Style | U.FL (UMCC) to U.FL (UMCC) |
