RELAY GEN PURPOSE DPDT 1A 3VDC
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage3 V
Contact formDPDT
Contact current1 AMax
Switching voltage110 VMax
| Power | |
|---|---|
| Coil Current | 16.7 mA |
| Coil Voltage | 3VDC |
| Contact Rating (Current) | 1 A |
| Must Operate Voltage | 2.4 VDC |
| Must Release Voltage | 0.3 VDC |
| Switching Voltage | 110VDC - Max |
| Environment and package | |

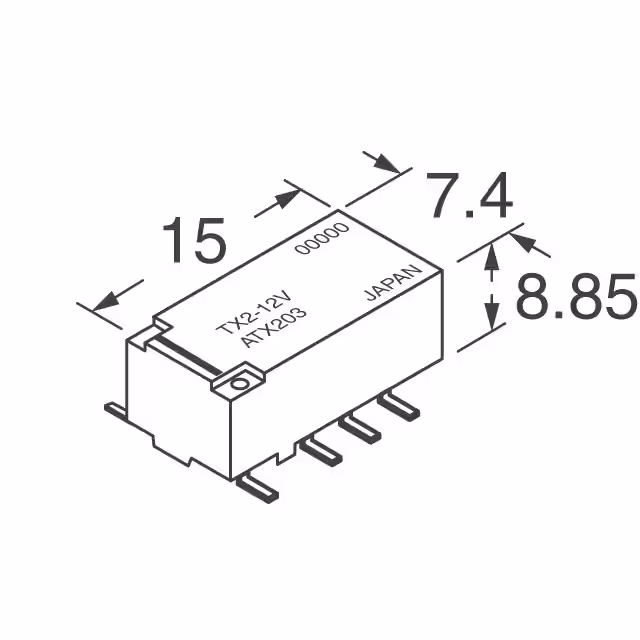

| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Base Product Number | TXS2 |
| Coil Insulation | - |
| Coil Resistance | 180 Ohms |
| Coil Type | Non Latching |

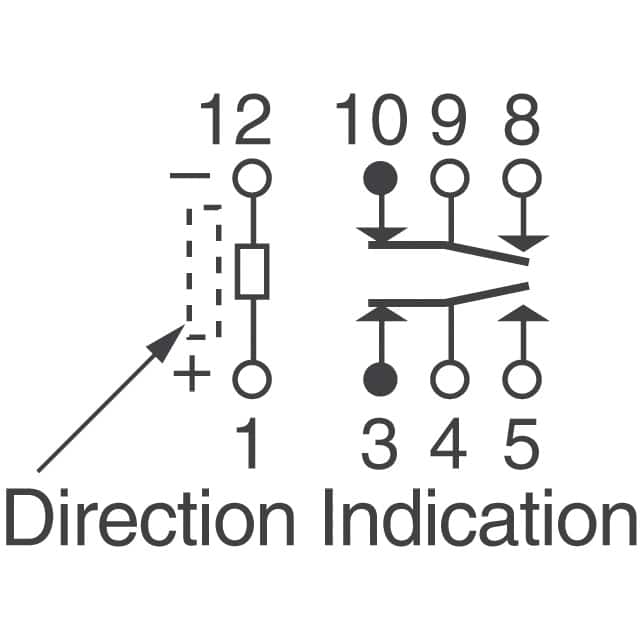

| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Features | - |
| Mfr | Panasonic Electric Works |
| Operate Time | 5 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Series | TX-S |
| Termination Style | Gull Wing |
