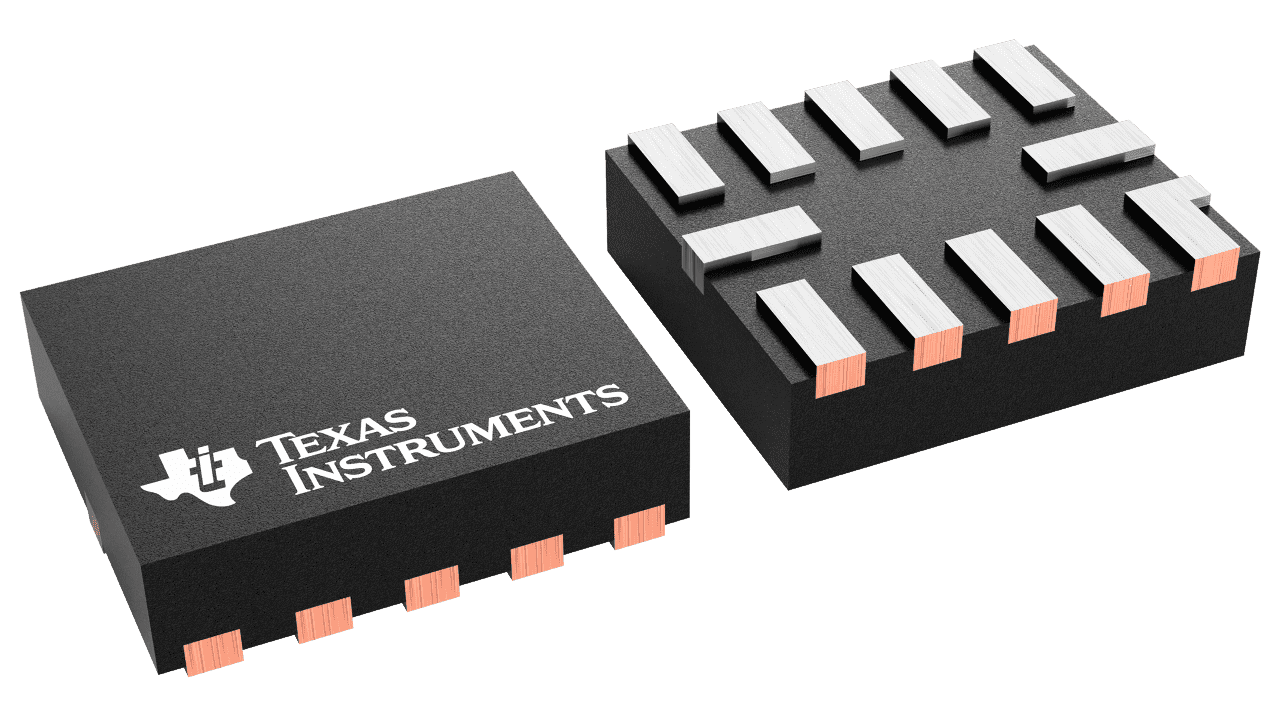

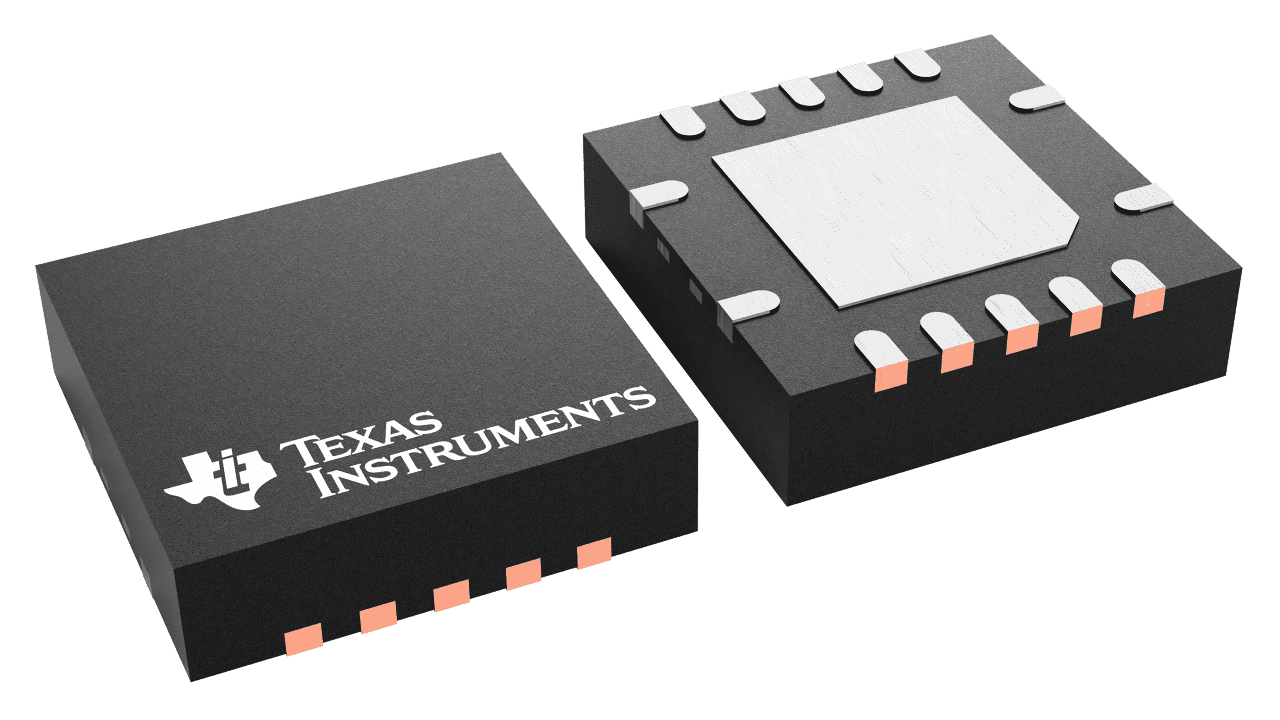

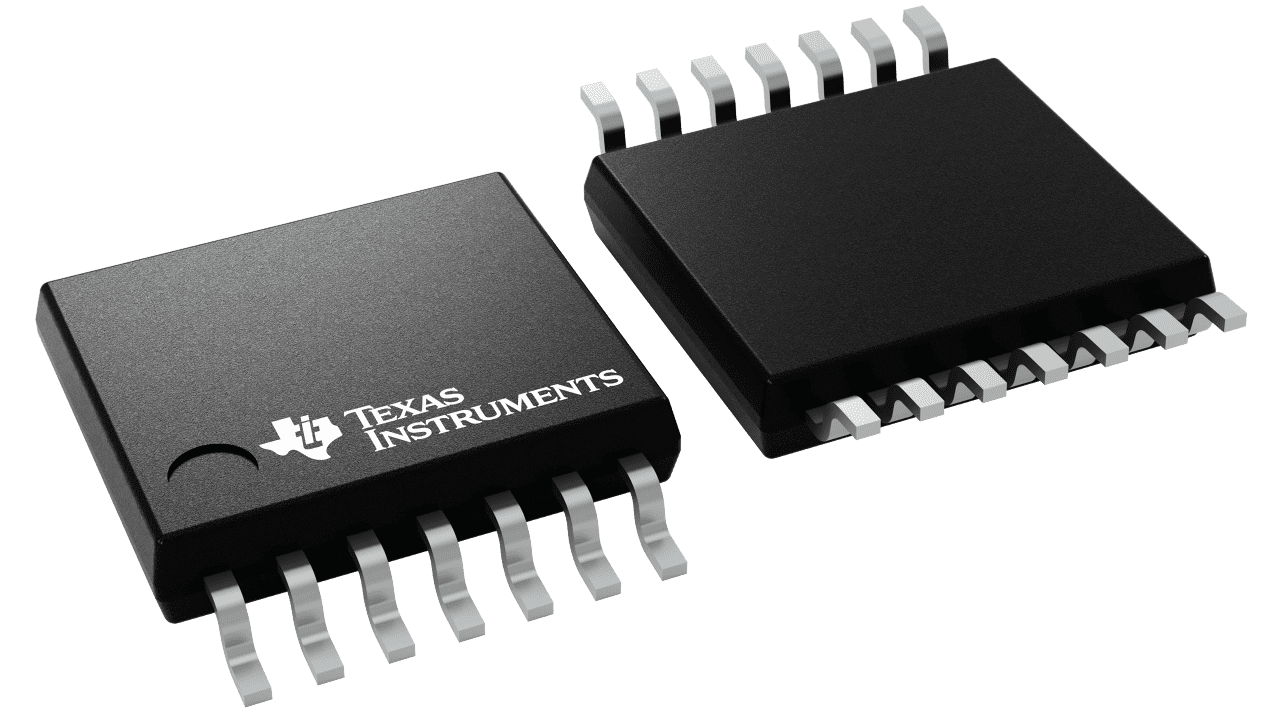

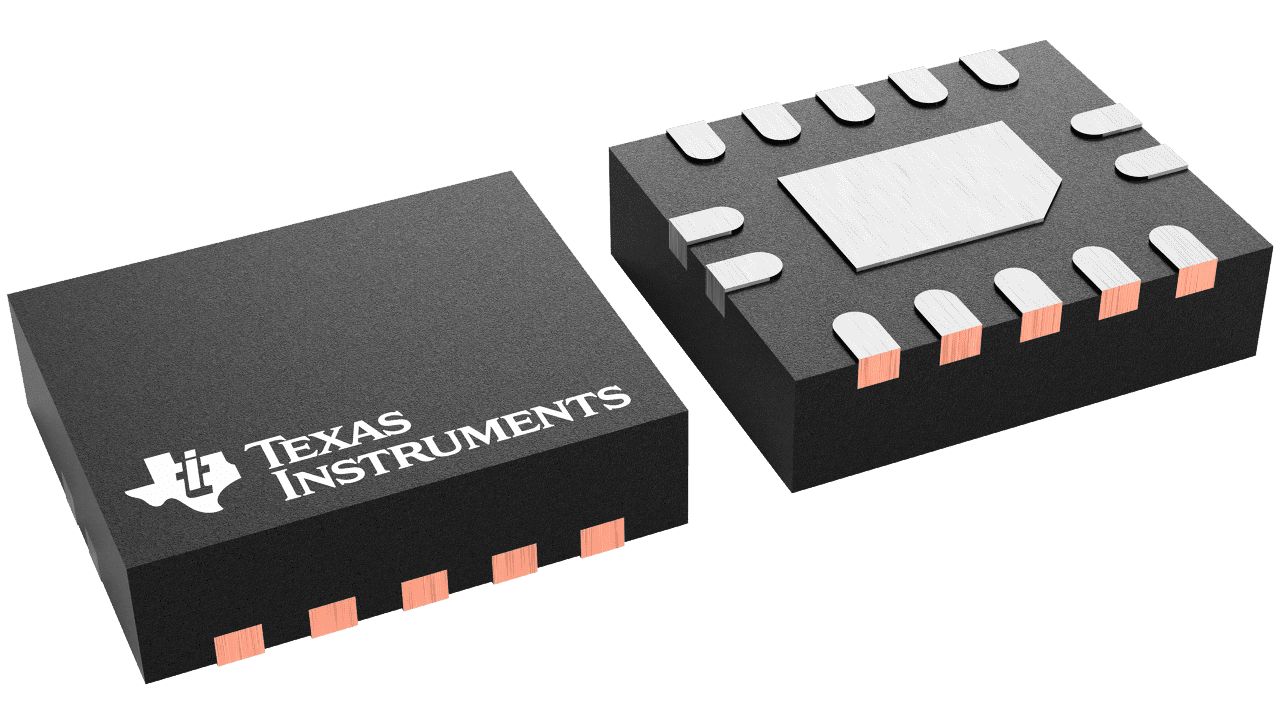

TXS0104V
ActiveThis 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 3.6V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3V to 5.5V. This allows for low-voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104V is designed so that the OE input circuit is supplied by VCCA. For the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor; the current-sourcing capability of the driver determines the minimum value of the resistor.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Supply current (max) (mA) | 0.025 |
| AC and DC characteristics | |
| Prop delay (ns) | 120 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 85 |
| Other | |
| Applications | GPIO, I2C, JTAG, MDIO, SDIO, SMBus, SPI, UART |
| Bits (#) | 4 |
| Data rate (max) (Mbps) | 24 |
| Direction control (typ) | Auto-direction |
| Features | Edge rate accelerator, Output enable |
| Rating | Catalog |
| Technology family | TXS |
| Topology | Open drain, Push-Pull |
| Vin (max) (V) | 3.6 |
| Vin (min) (V) | 1.65 |
| Vout (max) (V) | 5.5 |
| Vout (min) (V) | 2.3 |
