Texas InstrumentsUnited States

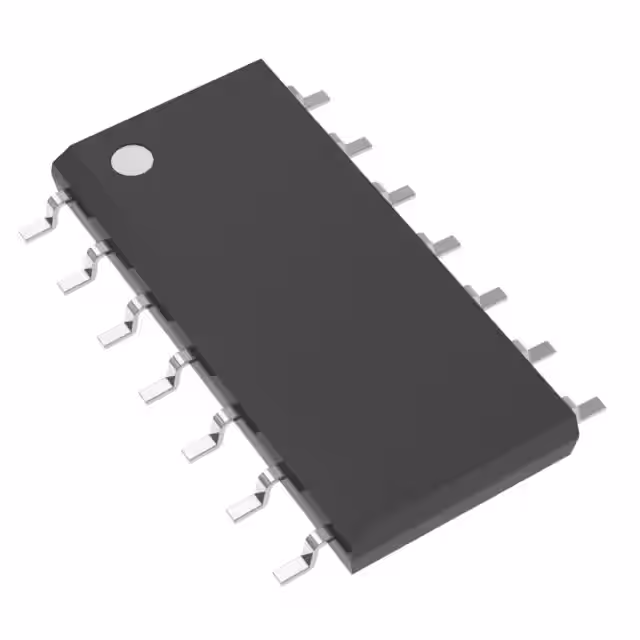

IC TRANSLTR BIDIRECTIONAL 14SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Channels per Circuit | 4 |
| Channel Type | Bidirectional |
| Voltage - VCCA | 1.65 V ~ 3.6 V |
| Voltage - VCCB | 2.3 V ~ 5.5 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Base Product Number | TXS0104 |
| Data Rate | 24Mbps |
| Features | Auto-Direction Sensing |
| Input Signal | - |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Signal | - |
| Output Type | Open Drain, Push-Pull |
| Product Status | Active |
| Series | - |
| Translator Type | Voltage Level |
Documents
No documents are linked to this part yet.
