PanasonicJapan
RELAY TELECOM DPDT 2A 4.5VDC
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage4.5 V
Contact formDPDT
Contact current2 AMax
Switching voltage220 VMax
| Power | |
|---|---|
| Coil Current | 44.5 mA |
| Coil Voltage | 4.5VDC |
| Contact Rating (Current) | 2 A |
| Must Operate Voltage | 3.38 VDC |
| Must Release Voltage | - |
| Switching Voltage | 220VDC - Max |
| Environment and package | |

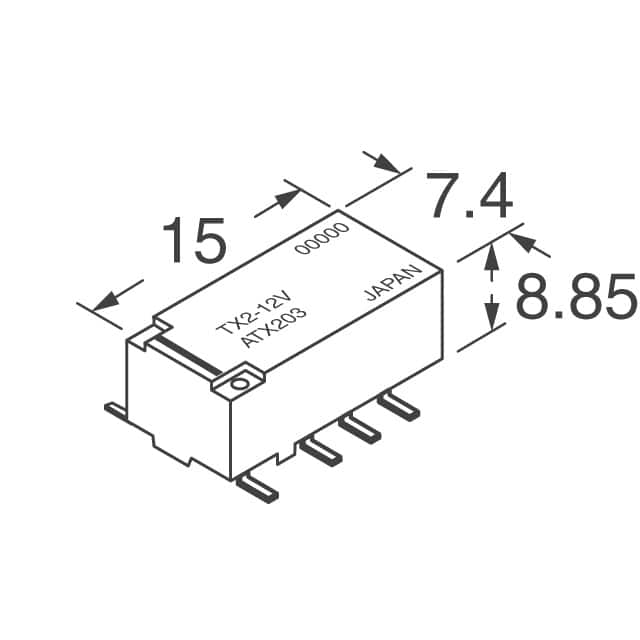

| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Base Product Number | TX2SA |
| Coil Insulation | - |
| Coil Resistance | 101 Ohms |

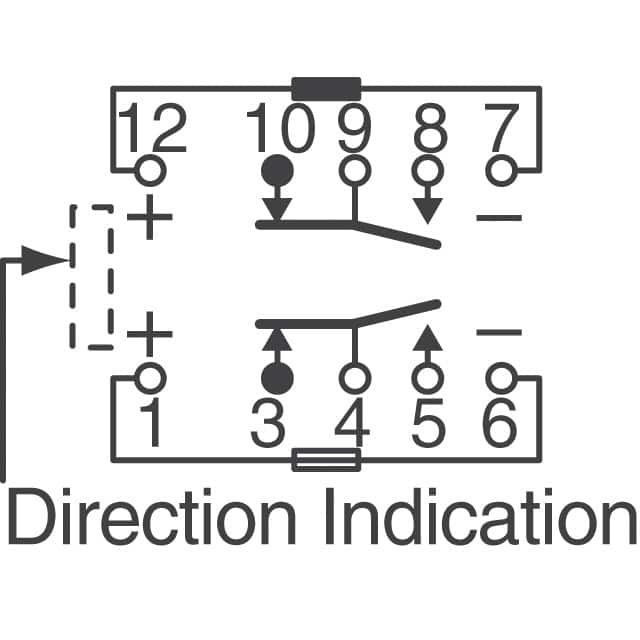

| Coil Type | Latching, Dual Coil |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Features | - |
| Mfr | Panasonic Electric Works |
| Operate Time | 4 ms |
| Product Status | Active |
| Relay Type | Telecom |
| Release Time | 4 ms |
| Seal Rating | Sealed - Fully |
| Series | TX |
| Termination Style | Gull Wing |
