TamuraJapan

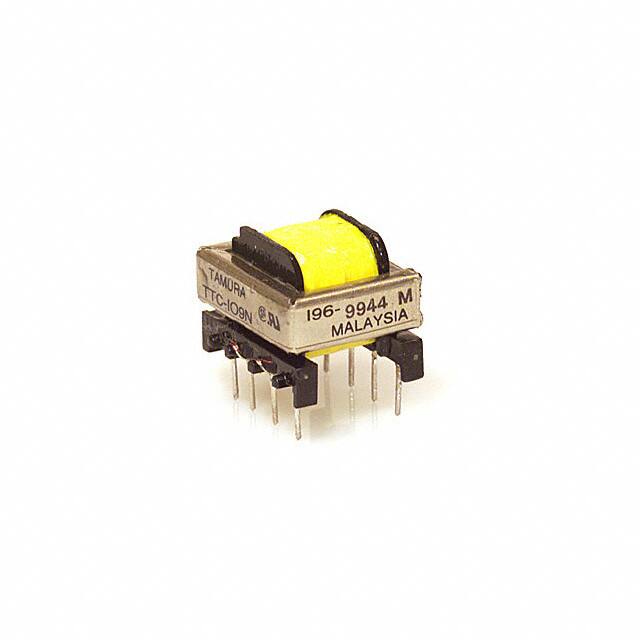

TRANSF TELE COUP 600 OHM 90MADC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power Level | -45dB ~ 10dB |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| AC and DC characteristics | |
| Frequency Range | 660Hz ~ 3.5kHz |
| Frequency Response | -1dB ~ 0.7dB |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| Environment and package | |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | 0.823" L x 0.752" W (20.90mm x 19.10mm) |
| Other | |
| Approval Agency | CSA-C22.2 No. 66-M1988, UL1862 |
| DC Resistance (DCR) - Primary | 71Ohm |
| DC Resistance (DCR) - Secondary | 117Ohm |
| Insertion Loss | 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz |
| Mfr | Tamura |
| Product Status | Obsolete |
| Return Loss | - |
| Series | TTC |
| Termination Style | PC Pin |
| Transformer Type | Data/Voice Coupling |
| Turns Ratio - Primary:Secondary | 1:1 |
| Weight | - |
