TamuraJapan

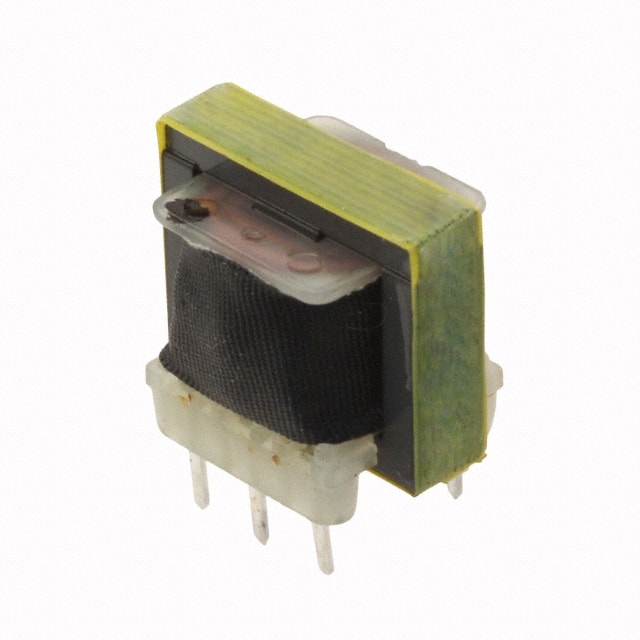

TRANSF TELE COUP 600CT:600CT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power Level | -45dB ~ 7dB |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| AC and DC characteristics | |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±0.5dB |
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 600CT |
| Environment and package | |
| Height - Seated (Max) | 0.752" (19.10mm) |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |

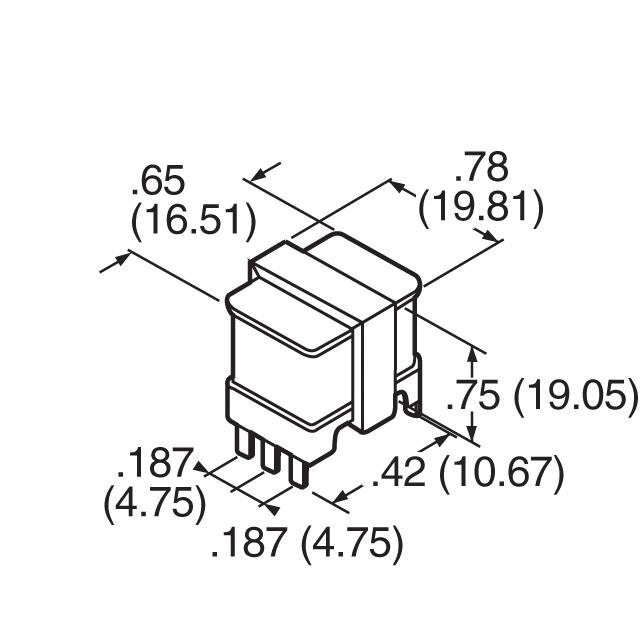

| Size / Dimension | 0.799" L x 0.689" W (20.30mm x 17.50mm) |
| Other | |
| Approval Agency | CSA-C22.2 No. 66-M1988, UL1459 |
| DC Resistance (DCR) - Primary | 44Ohm |
| DC Resistance (DCR) - Secondary | 56Ohm |
| Insertion Loss | 1.4dB Max @ 1kHz |
| Mfr | Tamura |
| Product Status | Active |
| Return Loss | - |
| Series | TTC |
| Termination Style | PC Pin |
| Transformer Type | Data/Voice Coupling |
| Turns Ratio - Primary:Secondary | 1:1 |
| Weight | - |
