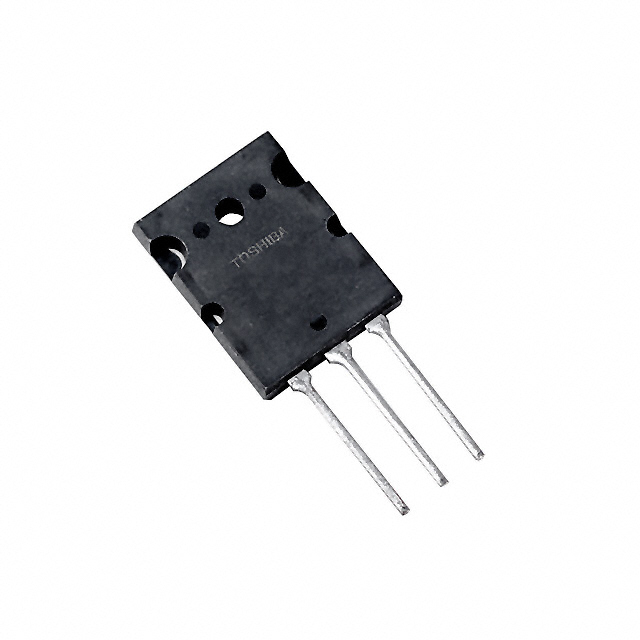

TRANS PNP 160V 18A TO3P
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage160 V
Collector current18 AMax
DC current gain801A
Power180 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| Current - Collector (Ic) (Max) | 18 A |
| Power - Max | 180 W |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 1A, 5V |
| Frequency - Transition | 30MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Package | Bulk |
| Package / Case | TO-3PL |
| Supplier Device Package | TO-3P(L) |
| Other | |
| Base Product Number | TTA0002 |
| Mfr | Toshiba Semiconductor and Storage |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 900mA, 9A |
