EMITTER IR 940NM 100MA SMD
All alternatives
View full reportTechnical parameters
Key specs
ColorInfrared
Wavelength940 nm
Forward voltage1.2 VTyp
Test current100 mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 100mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

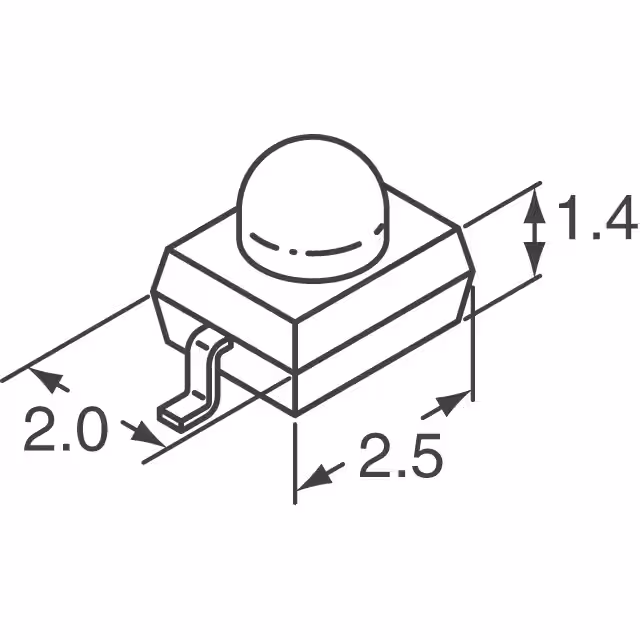

| Package / Case | 2-SMD, Gull Wing |
| Other | |
| Base Product Number | TSML1020 |
| Mfr | Vishay Semiconductor Opto Division |
| Orientation | Top View |
| Product Status | Active |
| Radiant Intensity (Ie) Min @ If | 3mW/sr @ 20mA |
| Series | - |
| Type | Infrared (IR) |
| Viewing Angle | 24° |
| Wavelength | 940nm |
