Touchstone SemiconductorUnited States
IC COMPARATOR DUAL W/REF 8MSOP
All alternatives
View full reportTechnical parameters
Key specs
Elements2
Output typePush-pull
Propagation delay12 µsMax
Supply voltage2.5 ~ 11 V
Quiescent current6 µAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 0.005µA @ 2.5V |
| Current - Output (Typ) | 40mA |
| Current - Quiescent (Max) | 6µA |
| Voltage - Supply, Single/Dual (±) | 2.5V ~ 11V, ±1.25V ~ 5.5V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 12µs |
| Voltage - Input Offset (Max) | 10mV @ 2.5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C |
| Package | Cut Tape (CT) |

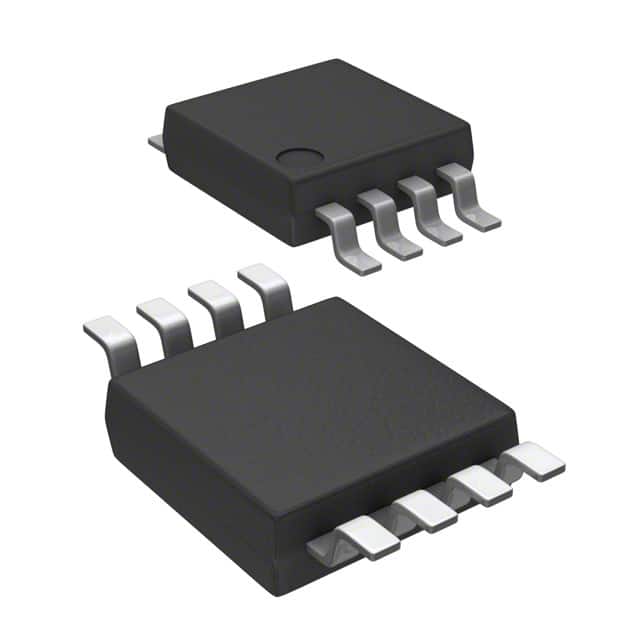

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Other | |
| Hysteresis | 50mV |
| Mfr | Touchstone Semiconductor |
| Number of Elements | 2 |
| Output Type | CMOS, TTL |
| Product Status | Obsolete |
| Series | TSM98x |
| Type | with Voltage Reference |
