OptiFuseUnited States

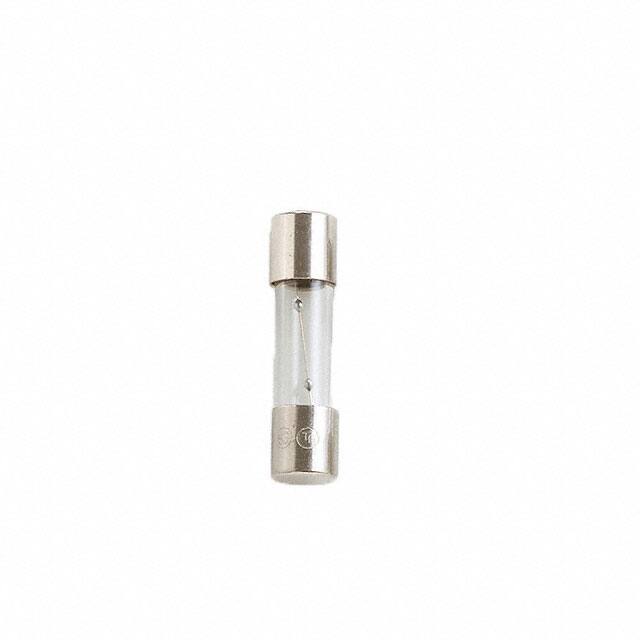

GLASS - 5X20MM (UL), SLOW 200MA
All alternatives
View full reportTechnical parameters
Key specs
Rated current200 mA
Rated voltage250 V
Response timeSlow
Breaking capacity100 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 100A |
| Current Rating (Amps) | 200 mA |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Requires Holder |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | 5mm x 20mm |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Other | |
| Approval Agency | CSA, cULus, KC |
| Base Product Number | TSC |
| Color | - |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 0.2224 |
| Mfr | OptiFuse |
| Product Status | Active |
| Response Time | Slow Blow |
| Series | TSC |
